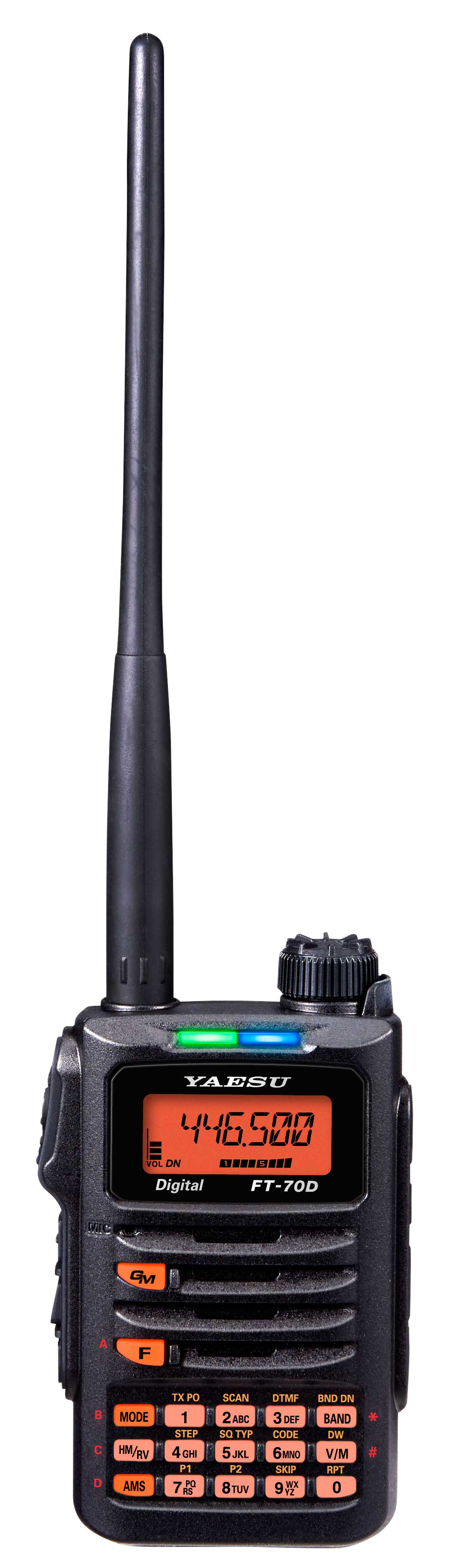

Click Image to Zoom InFT-70DR C4FM FDMA / FM 144/430 MHz Dual Band 5W Handheld Transceiver
The new FT-70DR is a compact and very attractively priced YAESU System Fusion transceiver providing both conventional analog FM operation and the advanced C4FM Digital mode. The FT-70DR provides up to 5W of reliable RF power, and its large Front Speaker delivers 700mW of Loud Audio Output. Because C4FM has better BER (Bit Error Rate) characteristics than other digital modulations, the user can expect exceptional audio quality. The new digital FT-70DR includes our unique Automatic Mode Select (AMS) function. AMS detects the operating mode of the received signal as C4FM digital or analog FM, and then automatically and instantly switches the receiver to the appropriate mode. Users do not need to manually change between modes. The multi-colored LED Mode-Indicator displayed on the front allows the operator to easily see what mode the FT-70DR is in at any given moment. LED Mode-Indicator clearly and visibly shows the transmit/ receive mode by changing its color so that the operating mode of the transceiver is easily recognized at a glance. One of the other distinguishing features of the FT-70DR is Digital Group Monitor (GM) with DG-ID (Digital Group Identification) and DP-ID (Digital Personal Identification) now included in the FT-70DR, to simplify the GM operation. Simply put, the transceivers selecting the same DG-ID or DP-ID can communicate with each other. Between 00 and 99 DG-ID and DP-ID are selectable which provides loads of flexibility so that users can enjoy group communication with friends in GM mode in accordance to their individual operational needs.The Yaesu FT-70DR is backed by a industry leading 3 year warranty. Country of Origin: Japan
| Antennas & Adapters | ||
| CN-3 | SMA to BNC Adaptor |
|
| Batteries | ||

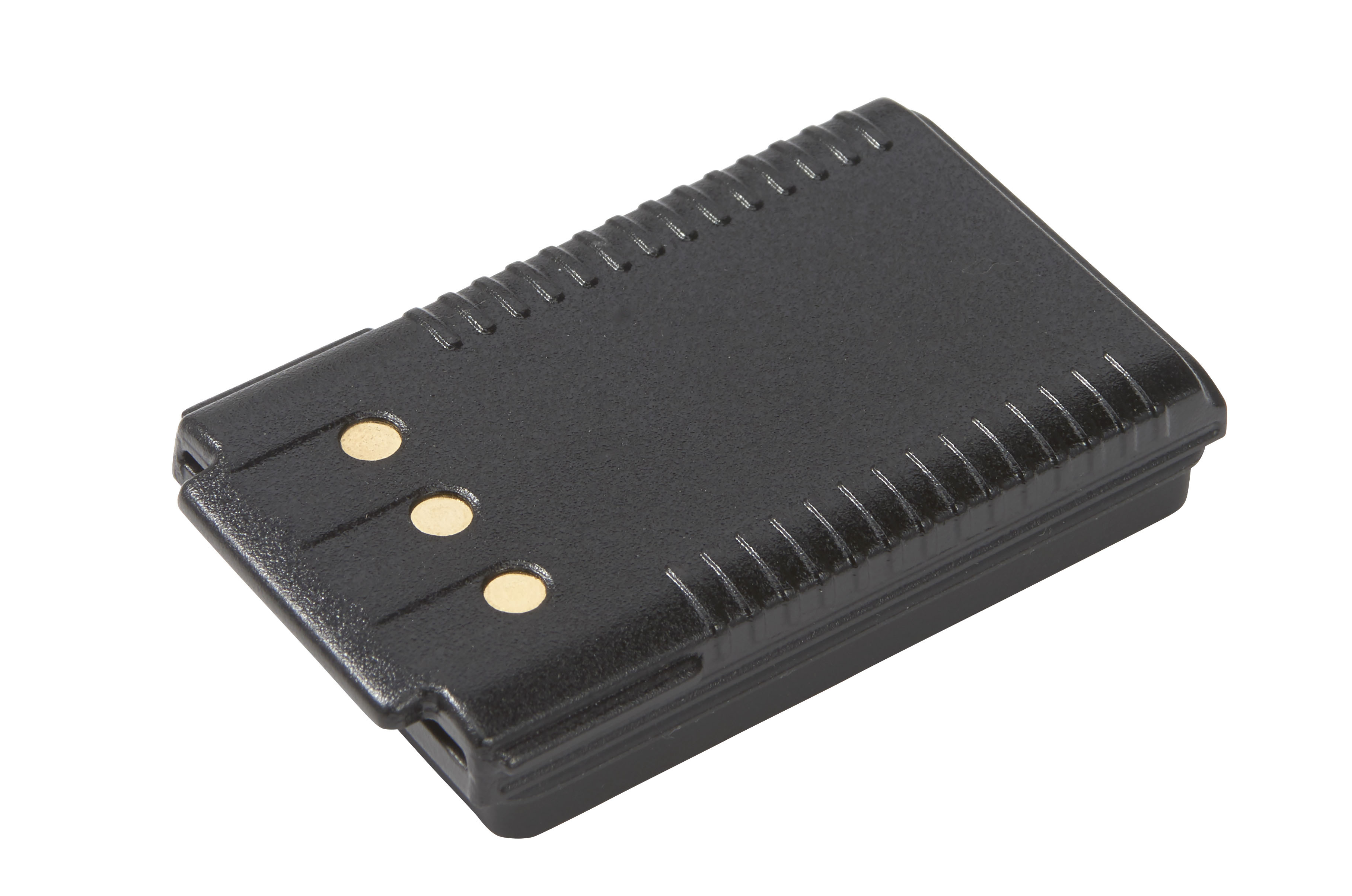

| SBR-24LI | 1800mAh Li-Ion Battery |
|
| Battery Chargers | ||
| E-DC-6 | DC Cable; plug and wire only |
|
| SAD-25B | AC Adapter |
|
| Cases | ||
| SHC-27 | Carrying Case | |
| Chargers | ||
| E-DC-6 | DC Cable; plug and wire only |
|
| SAD-25B | AC Adapter |
|
| SAD-25B | AC Adapter |
|

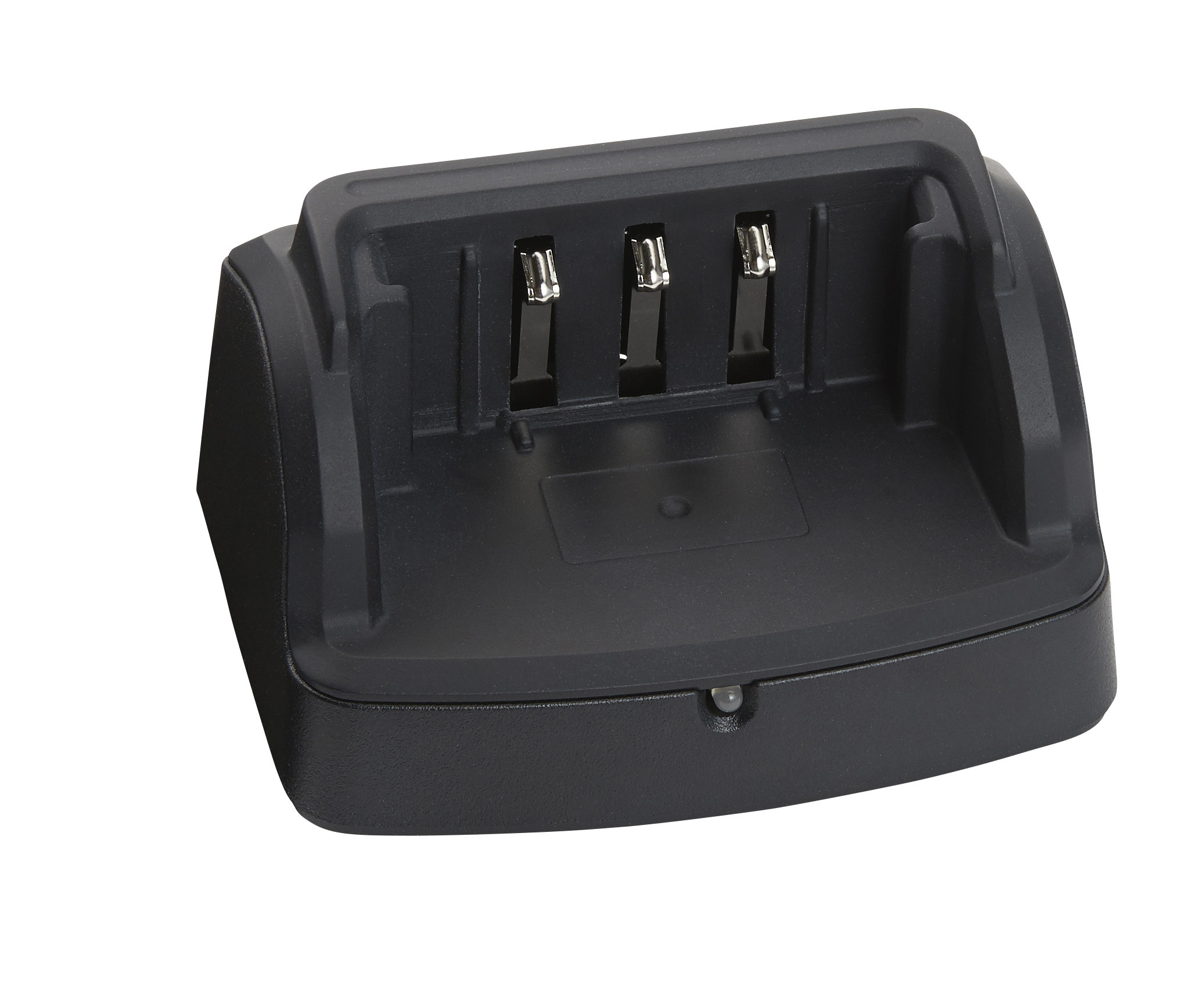

| SBH-28 | Charging Cradle |
|
| SDD-13 | DC Cable with Cigarette-Lighter Plug |
|
| Chargers - DC | Vehicular | ||
| E-DC-6 | DC Cable; plug and wire only |
|
| Headsets | ||
| SSM-63A | Headset with Boom Mic and PTT/VOX (replaces MH-37A4B) |
|
| Microphones | ||
| CT-44 | Microphone Adapter (2 conductor female mic to single jack) |
|
| SSM-17A | Speaker Micrphone (replaces MH-34B4B) |
|
| SSM-518A | Microphone |
|
| Programming | ||
| CT-27A CLONING CABLE FT-X0R/VX-10/210 | CT-27A CLONING CABLE FT-X0R/VX-10/210 |
|
Off brand hotpsots do not use the true Fusion protocol. Hotpsots do not connect you to the WIRES-X network, they connect to what are known as YSF or FCS reflectors which are not part of the WIRES-X network.
When I press the talk button (PTT) my radio’s display will shut off and restart. Why does this happen?The radio will shut down to protect itself. This will happen when the radio is unable to get sufficient “energy” from the power source. 1. Make sure your battery is fully charged. 2. Most batteries even when well cared for may still need to be replaced after a few years. 3. If you have a voltmeter, you can check your battery for DC voltage. If you read 6 volts or below, the battery may have to be replaced. The closer to 0 volts, the worse the condition of your battery.
Can I leave my radio on the charger constantly?We recommend only leaving the radio in the charger for the amount of time it takes to fully charge the battery. Leaving the radio on charge for a few extra hours will not have an impact. However, leaving the battery to charge for more than a few days at a time can contribute to premature wear on your battery.
How do I store my radio to help protect my battery life?If you will be storing your radio for extended periods of time, it is recommended to remove the battery from the radio (some models). Leaving the battery attached to the radio will allow the radio to drain the battery slowly over time. Over a long enough period of time this can cause the battery to reach a state of discharge that it cannot recover from.
How much range can I expect from my radio?Transmit range can vary widely with the same radio. Using the stock antenna at ground level you may only get a mile or two of transmit range. The same radio (more specifically the antenna) up at elevation can transmit much further as the signal is not obstructed or reflected by buildings, trees, hills, etc.
The FT-70DR is built to commercial grade standards, including the IP54 Rating for Dust and Water protection, making this radio suitable for operation in the harshest of environments.
Wide band receive coverage108 MHz - 580 MHz, continuous reception for aircraft bands, public service channels, etc.
Versatile Scanning CapabilitiesProgrammable VFO Scan, scans all channels in the desired frequency range, Memory scan allows scanning of user selectable frequencies, Priority Channel Scan can be used to scan memory channels while making one channel a priority. Weather Alert scan alerts the user when severe weather is approaching.
Automatic Mode Select (AMS)The Automatic Mode Select function detects the receive signal mode The transceiver automatically selects one of the four communication modes according to the signal received. This is extremely convenient when listening for communications, as you do not need to be aware of the other party’s communication mode. The transceiver can also be operated in a fixed communication mode.
More Advanced FeaturesOther advanced features include: External DC Jack for DC Supply Operation and to Charge the Battery, Mini USB port for convenient programming and software updates, CTCSS/ DCS Operation, Automatic Power Off (APO) feature, RF Squelch, Transmitter Time Out Timer (TOT) and Busy Channel Lock-Out (BCLO).
