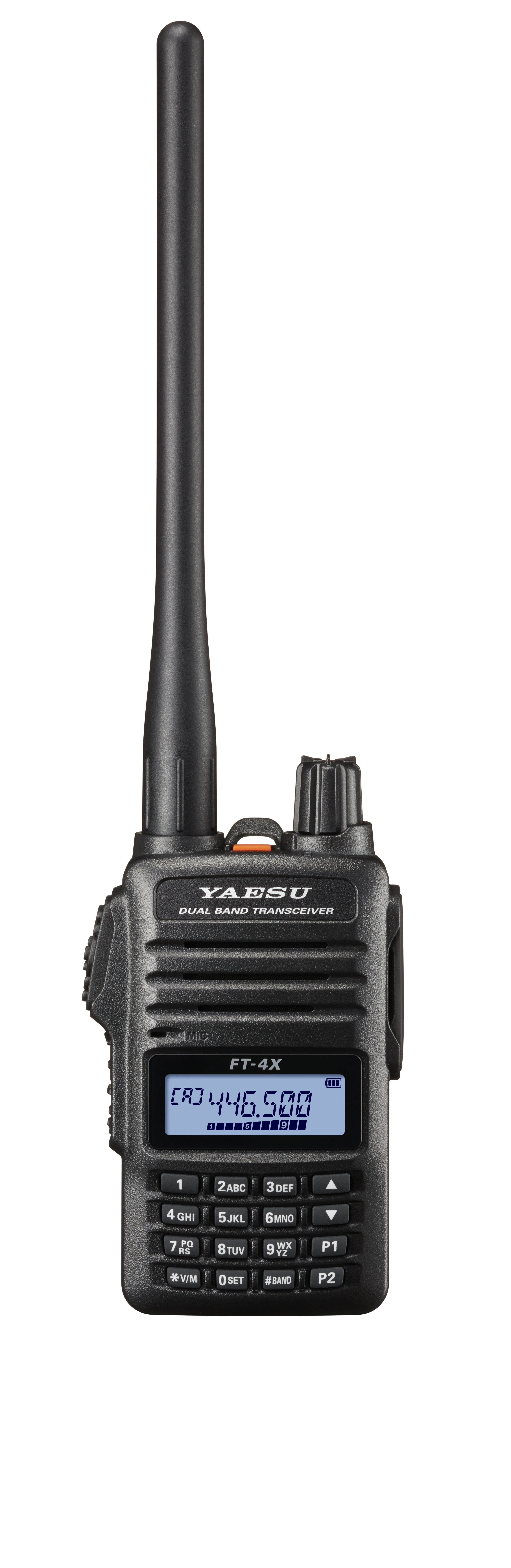

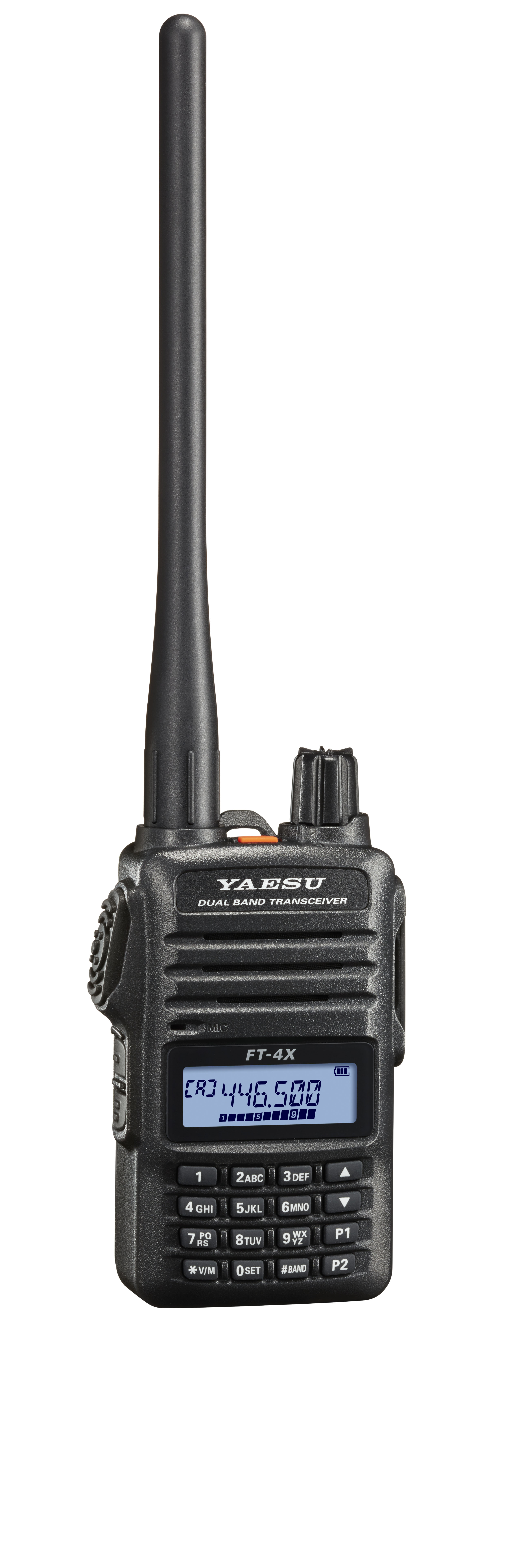

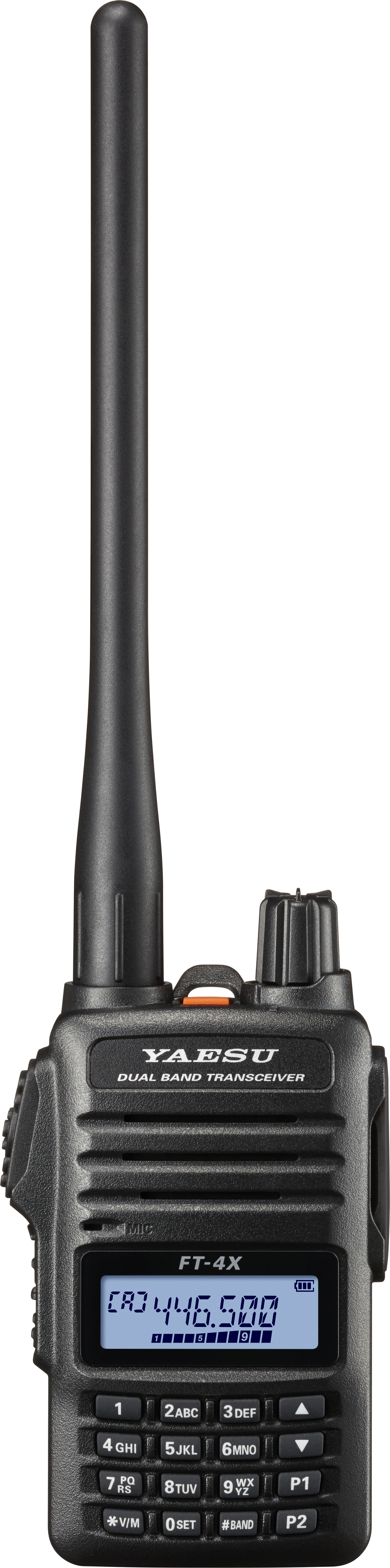

Click Image to Zoom InFT-4XR – VHF/UHF Dual Band FM Handheld Transceiver
The FT-4XR 2 meter/ 440 MHz HT has three output power levels: 5, 2.5 or 0.5 watts transmitting from 144 to 148 MHz and from 400 to 480 MHz. Receive coverage is 65-108 (FM broadcast band), 136-174 and 400-480 MHz. The FT-4XR is compact and light, yet ruggedly constructed. The speaker provides a full 1 Watt of powerful, clear audio. The supplied 1750mAh Li-ion battery pack is capable of up to 15 hours operation (TX 5 seconds, RX 5 seconds, Standby 90 seconds). The SBH-22 3.5-hour rapid charger is included. VOX operation is available with the optional SSM-512B earpiece microphone. Other features include: WX Channels with “Severe Weather” Alert, PC Programming (optional cable), Transceiver-to-Transceiver Cloning (optional cable), Keypad Entry, FM Broadcast Receiver, Automatic Range Transponder System (ARTS), CTCSS/DCS Operation, Busy Channel Lockout (BLCO), Automatic Power Off feature and Transmitter Time Out Timer (TOT). Size: 2.1 x 3.5 x 1.2 inches (less knobs and antenna) 8.82 oz. The Yaesu FT-70DR is backed by a industry leading 3 year warranty. Country of Origin: China
| Batteries | ||
| SBR-28LI | Li-ion Battery 7.4V (1750mAh) | |
| Belt Clips | Cases | ||
| SHB-18 | Belt Clip |
|
| Brackets | ||
| SHB-18 | Belt Clip |
|
| Chargers | ||
| SAD-26B | AC Adapter Cable |
|
| SAD-26B | AC Adapter Cable |
|
| SBH-22 | Charging Cradle |
|
| Microphones | ||

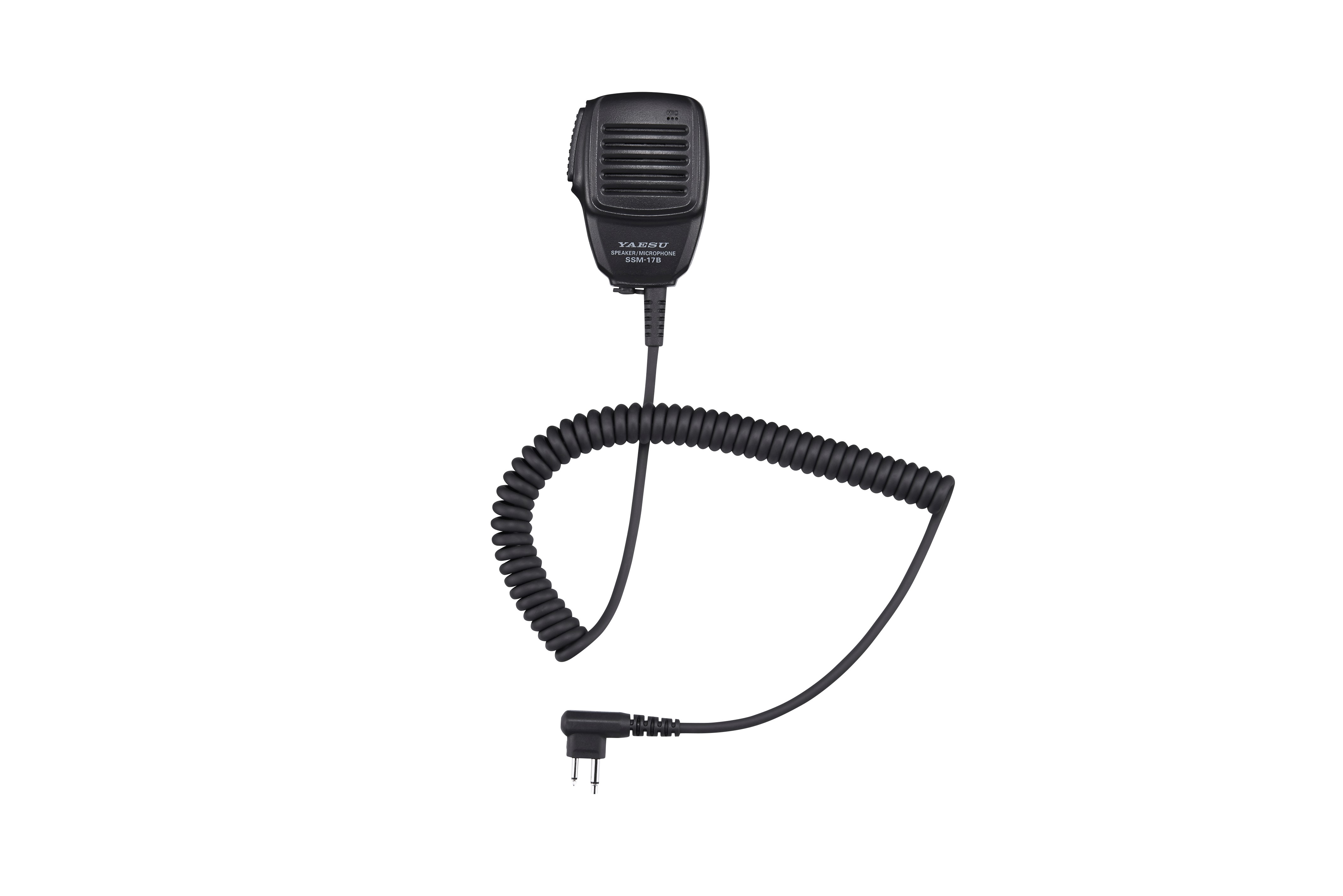

| SSM-17B | Speaker Microphone (replaces SSM-16B) |
|

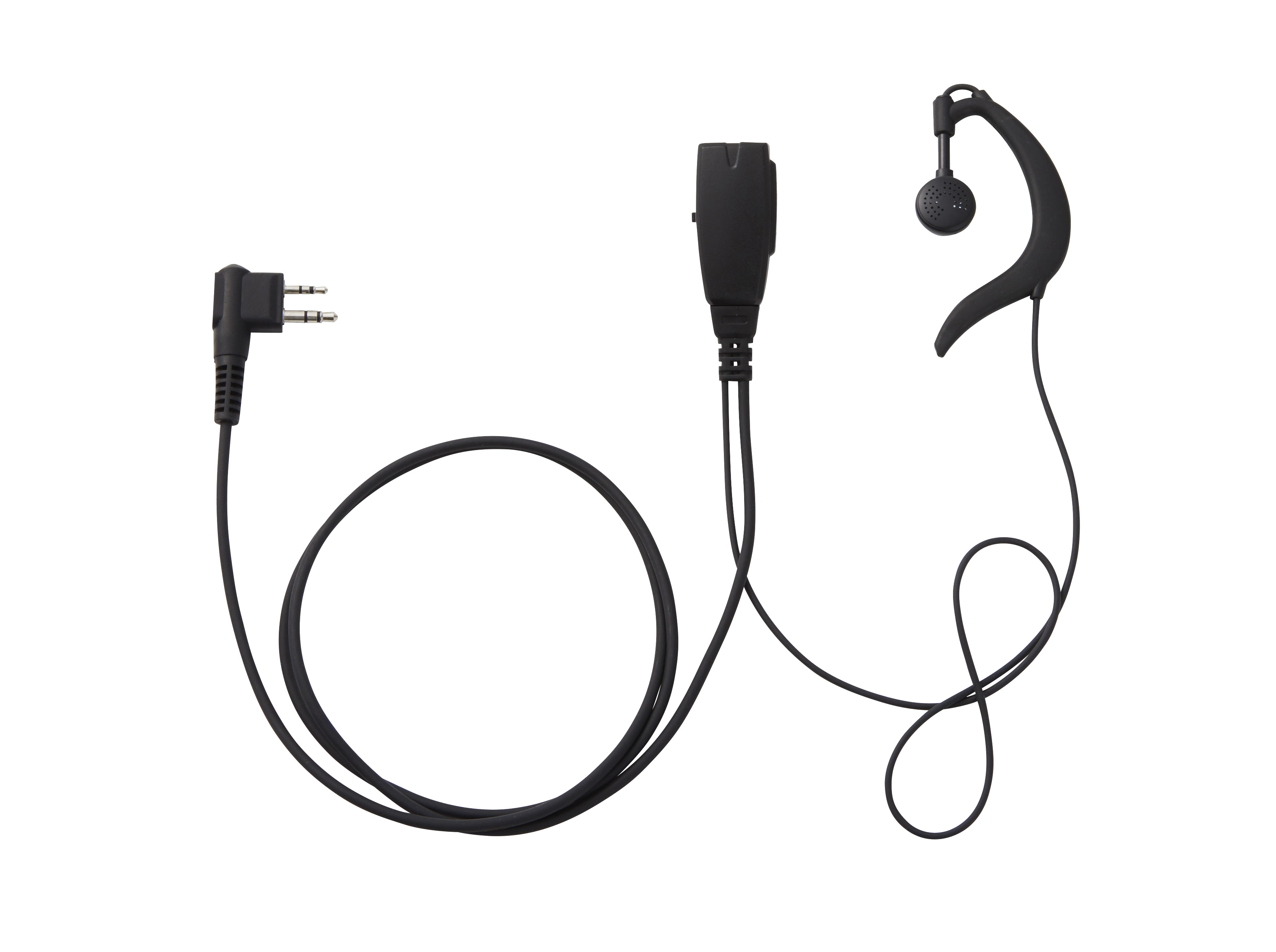

| SSM-512B | VOX Earpiece Microphone |
|
| Programming | ||

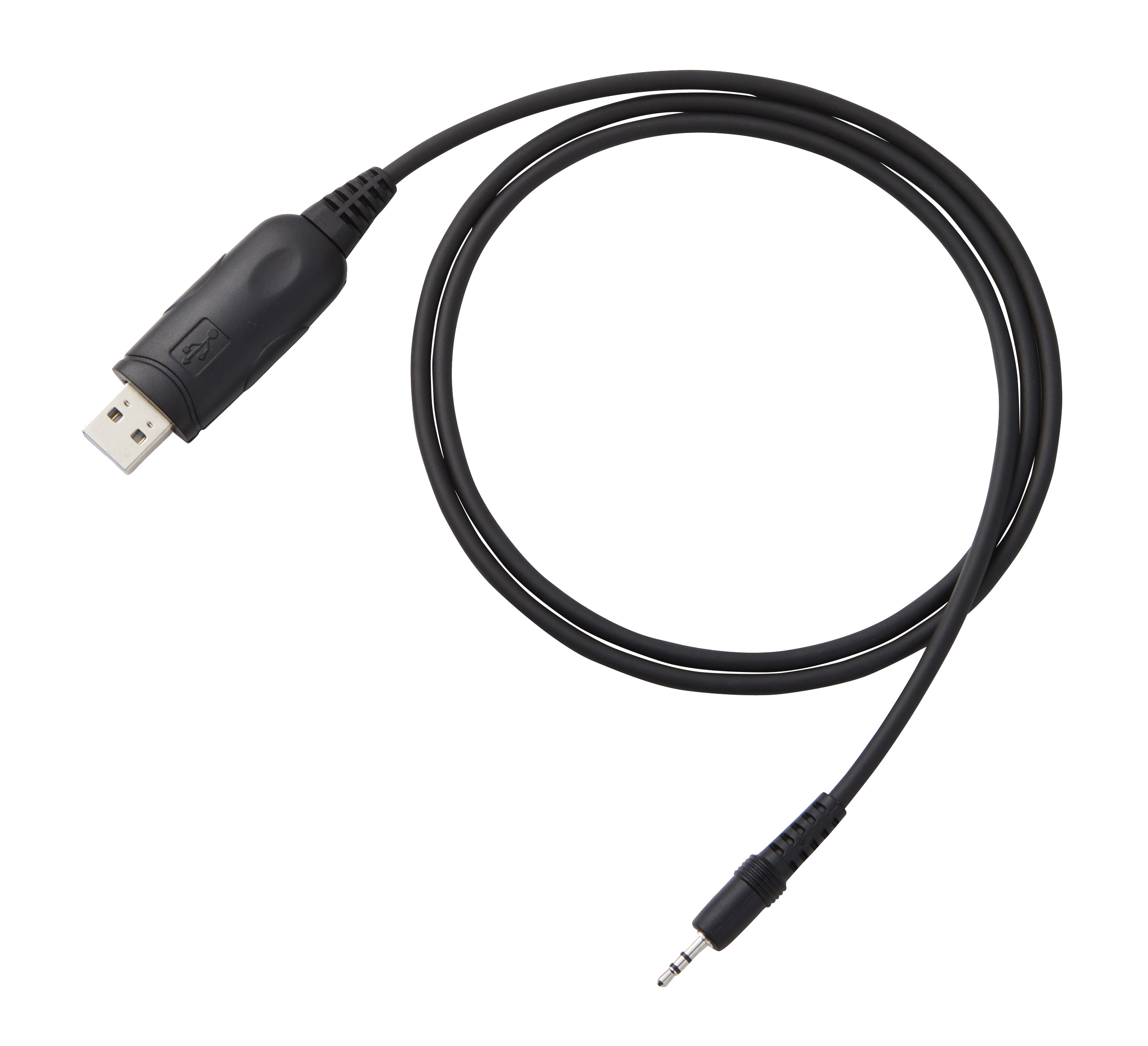

| SCU-35 | Programming Cable |
|
| SCU-36 | Cloning Cable |
|
The radio will shut down to protect itself. This will happen when the radio is unable to get sufficient “energy” from the power source. 1. Make sure your battery is fully charged. 2. Most batteries even when well cared for may still need to be replaced after a few years. 3. If you have a voltmeter, you can check your battery for DC voltage. If you read 6 volts or below, the battery may have to be replaced. The closer to 0 volts, the worse the condition of your battery.
Can I leave my radio on the charger constantly?We recommend only leaving the radio in the charger for the amount of time it takes to fully charge the battery. Leaving the radio on charge for a few extra hours will not have an impact. However, leaving the battery to charge for more than a few days at a time can contribute to premature wear on your battery.
How do I store my radio to help protect my battery life?If you will be storing your radio for extended periods of time, it is recommended to remove the battery from the radio. Leaving the battery attached to the radio will allow the radio to drain the battery slowly over time. Over a long enough period of time this can cause the battery to reach a state of discharge that it cannot recover from.
How much range can I expect from my radio?Transmit range can vary widely with the same radio. Using the stock antenna at ground level you may only get a mile or two of transmit range. The same radio (more specifically the antenna) up at elevation can transmit much further as the signal is not obstructed or reflected by buildings, trees, hills, etc.
With 5 Watts of reliable RF output power this radio is sure to be heard. Never miss a call with One watt of Crisp, Clear Audio output from the oversized front panel speaker.
High Capacity Li-Ion BatteryPackaged with a powerful 1750 mAh Li-Ion battery pack, giving the radio over 9 hours of operating time. To ensure minimal down time the FT-4XR also comes packaged with a 3.5-Hour Rapid charger.
Versatile Scanning CapabilitiesProgrammable VFO Scan scans all channels in the desired frequency range, Memory scan allows scanning of user selectable frequencies, Priority Channel Scan can be used to scan memory channels while making one channel a priority. Weather Alert scan alerts the user when severe weather is approaching.
PC ProgrammableThe FT-4XR is capable of being programmed directly from a PC making all of the advanced setup features a breeze using the optional software and SCU-35 programming cable.
More Advanced FeaturesTons of advanced features are loaded into this compact radio including: Transceiver to Transceiver cloning with the optional SCU-36 clone cable, FM Band receiver equipped, ARTS (Automatic Range Transponder System), DTMF operation, CTCSS/DCS operation, TOT (time out timer) and more.
