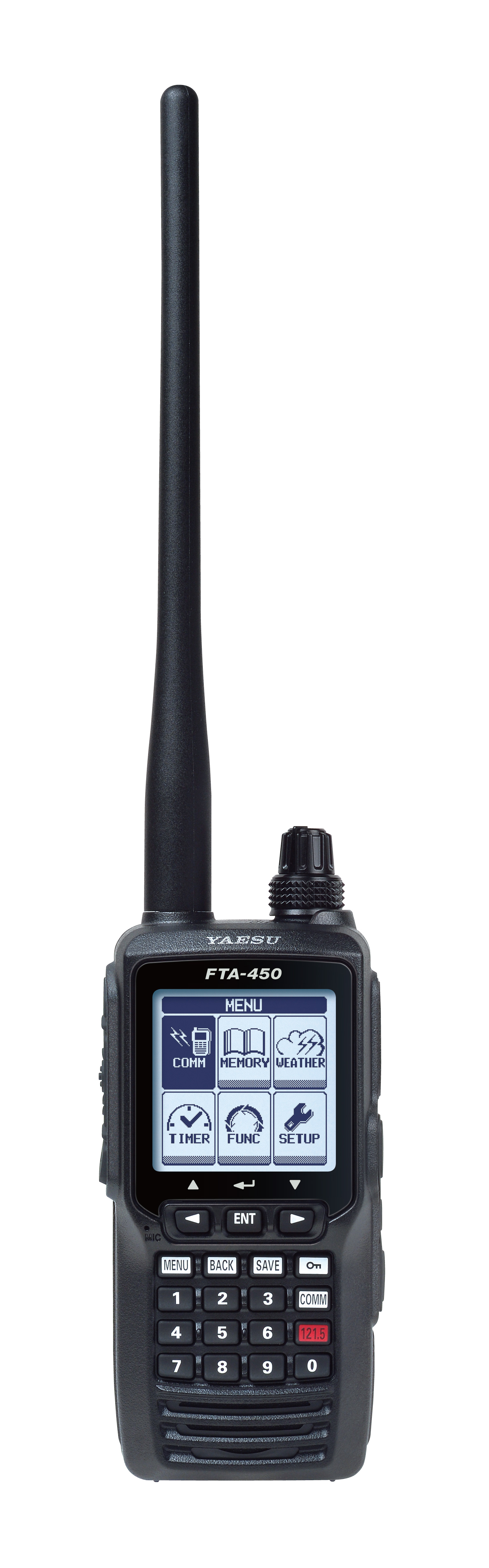

Click Image to Zoom InFTA-450L Owner's Manual
FEATURES AT A GLANCE
Now Meets MIL-STD-810F
The FTA-450L has now been tested and complies with the Military Standard MIL-STD-810F. Similar to commercial Land Mobile radios, all current Yaesu Airband Transceivers have been tested for durability against Low temperatures, High temperatures, Shock, Vibration, Dust and Rain, ensuring many years of rugged use.
IPX5 Rating - Water Protection
SUPPLIED ACCESSORIES
The YAESU FTA-450L is a competitively priced (COMM ONLY) version of the wildly successful FTA-550L and FTA-750L. Featuring the same Easy To Operate icon driven menu system, on a large 1.7" x 1.7" Full Dot Matrix Display. The same Loud 800mW internal audio speaker guarantees calls will not be missed. 8.33 kHz Narrow Band compatible, with a programmable 200 channel memory bank, means all favorite channels can be easily stored and retreived with just a few button presses. Valued packaged with all the necessary accessories, including 110VAC and 12VDC chargers, headset adapter, Alkaline battery tray, Belt Clip, USB programming cable, and a large capacity 1800mAh Li-Ion rechargeable battery. The Yaesu FTA-450L is backed by a industry leading 3 year warranty. Country of Origin: Japan
| Batteries | ||
| SBR-12LI | 1800mAh Lithium Ion Battery replaced by SBR-39LI | |
| SBT-12 | SBT-12 Alkaline battery Tray |
|
| Battery Chargers | ||
| SAD-25B | AC Adapter |
|
| Battery Packs | ||
| SBR-12LI | 1800mAh Lithium Ion Battery replaced by SBR-39LI | |
| SBR-39LI | 2200mAh Lithium Ion Battery |
|
| Battery Trays - Dry Cell | ||
| SBH-11 | Charging Cradle |
|
| SBT-12 | SBT-12 Alkaline battery Tray |
|
| Belt Clips | Cases | ||
| SCH-11 | Handheld VHF Hanger Bracket |
|
| SHB-11 | Belt Clip |
|
| SHC-28 | Nylon Carrying Case |
|
| Brackets | ||
| SHB-11 | Belt Clip |
|
| Cases & Belt Clips | ||
| SHC-28 | Nylon Carrying Case |
|
| Chargers | ||
| SAD-11 | AC Charging cable replaced by SAD-25B | |
| SAD-25B | AC Adapter |
|
| SAD-25B | AC Adapter |
|
| SBH-11 | Charging Cradle |
|
| Chargers - DC | Vehicular | ||
| SDD-19 | 12VDC Cigarette Charger |
|
| Headsets | Headset Adapters | ||
| SCU-15 | Headset Adapter Cable replaced by SCU-42 | |
| SCU-42 | SCU-42 Headset Adapter Cable with PTT connection |
|
| Microphones | ||
| SEP-10A | SEP-10A Earphone |
|
| Mounting Hardware | ||
| SCH-11 | Handheld VHF Hanger Bracket |
|
| Programming Cables | ||
| T9101606 | USB Programming Cable | |
| Speaker Microphones | ||
| SEP-10A* | Earphone for SSM-10A / SSM-20A |
|
| SEP-11A | Earbud Speaker |
|
| SSM-10A | SSM-10A Speaker Microphone replaced by SSM-20A | |
| SSM-20A | SSM-20A Speaker Microphone |
|
In most cases it is necessary to adjust the radio’s squelch (SQL) level correctly. 1. Tap and release the SQL button once. 2. (IMMEDIATELY) after releasing the SQL button rotate the lower rotary knob clockwise to increase the SQL level several settings until the noise is gone. 3. If it did not work, make sure immediately after you release the SQL button, to turn the lower knob clockwise. The radio will time out if you wait more than a few seconds.
I just updated the firmware in my radio, and it shows “No Firmware” on the display. What happened?Unfortunately, this means you have installed an older version of firmware in your radio and have caused some corruption. This generally isn’t a permanent issue but the radio will need to come in for service for us to resolve this for you. Please use the Contact Us link at the top of the page to send your radio in for service.
When I press the talk button (PTT) my radio’s display will shut off and restart. Why does this happen?The radio will shut down to protect itself. This will happen when the radio is unable to get sufficient “energy” from the power source. 1. Make sure your battery is fully charged. 2. Most batteries even when well cared for may still need to be replaced after a few years. 3. If you have a voltmeter, you can check your battery for DC voltage. If you read 6 volts or below, the battery may have to be replaced. The closer to 0 volts, the worse the condition of your battery.
Can I leave my radio on the charger constantly?We recommend only leaving the radio in the charger for the amount of time it takes to fully charge the battery. Leaving the radio on charge for a few extra hours will not have an impact. However, leaving the battery to charge for more than a few days at a time can contribute to premature wear on your battery.
How do I store my radio to help protect my battery life?If you will be storing your radio for extended periods of time, it is recommended to remove the battery from the radio. Leaving the battery attached to the radio will allow the radio to drain the battery slowly over time. Over a long enough period of time this can cause the battery to reach a state of discharge that it cannot recover from.
Why can others not hear me when I transmit?There are several reasons this can happen which are not a fault of the radio. Make sure you test with another person who is aware you will test your radio with theirs. Check that both radios are on the same non-emergency open frequency. Speak clearly and directly into the microphone hole opening with your mouth no more than 2 inches away.
How much range can I expect from my radio?Transmit range can vary widely with the same radio. Using the stock antenna at ground level you may only get a mile or two of transmit range. The same radio (more specifically the antenna) up at elevation can transmit much further as the signal is not obstructed or reflected by buildings, trees, hills, etc.
I am using a headset with my aviation radio, but my voice is not being sent out. What am I doing wrong?When using a headset with your radio you must change the radios setting from INT (internal mic) to EXT (external mic). By default, this setting is set to internal. Go to your radios MENU and select SETUP. Next select COMM SETUP. In the MIC SELECT option change it to EXT MIC.
• 5 Watts TX Output Power (Air Band: AM 5W, P.E.P. typical, 1.5 W carrier) • Huge 1.7”x1.7” (43.2 x 43.2mm) Full-Dot Matrix Display (160 x 160 dots) • Loud Audio (0.8W) • 8.33kHz Narrow Band compatible • 200 Memory Channels with 15-character alphanumeric tags • Water Protection – IPX5 Rating • Rugged Construction: Certified to MIL-STD-810F • Includes High-Capacity Rechargeable Li-ion Battery Pack (7.2v, 2200mAh) • External-DC input for operation and charging • Includes Alkaline Battery Tray (AA x 6) • NOAA Weather Channel Receive • NOAA Weather Alert • Back-lit Keypad and Display with Dimmer • PC Programmable (Includes USB Cable)
Now Meets MIL-STD-810FThe FTA-450L has now been tested and complies with the Military Standard MIL-STD-810F. Similar to commercial Land Mobile radios, all current Yaesu Airband Transceivers have been tested for durability against Low temperatures, High temperatures, Shock, Vibration, Dust and Rain, ensuring many years of rugged use.
Easy to Operate Menu SystemThe FTA-450 comes configured with an easy to operate icon driven menu system. The displays and menu settings are logically configured for a more intuitive user interface.
Huge Dot Matrix Display (160 x 160 dots)The FTA-450 features a huge 1.7" x 1.7" full dot matrix LCD display with full backlight and dimmer. The high resolution display makes it easier to view all the great features the FTA-450 has to offer.
200 Memory channels with up to 15 Alphanumeric charactersThe FTA-450 can store up to 200 Memory channels for quick and easy retrieval. With the capability of using up to 15 Alphanumeric characters per name the FTA-450 allows for a better channel description.
