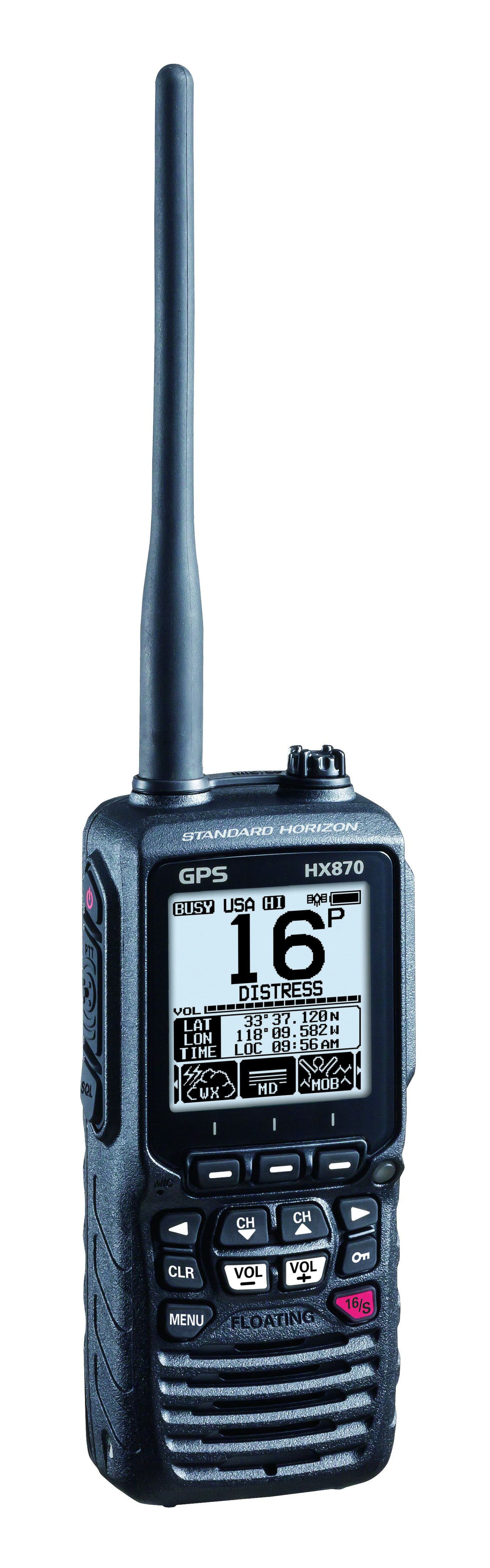

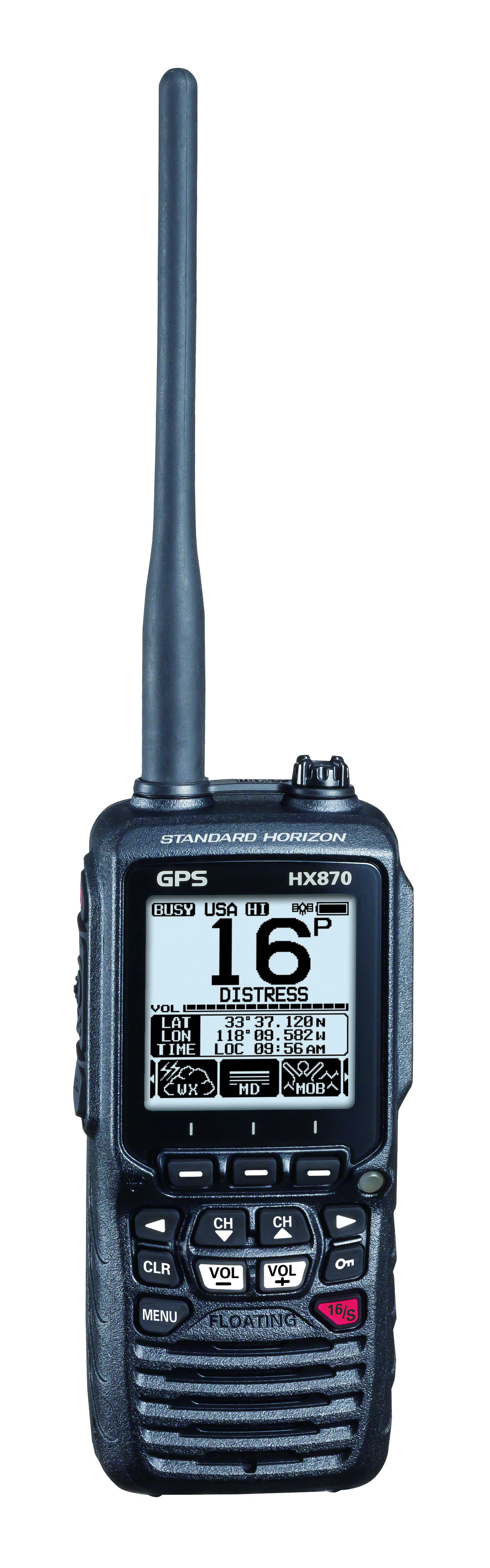

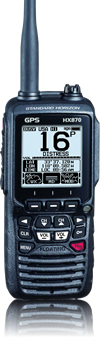

HX870 - “FLOATING” 6 Watt Handheld VHF with internal GPS receiver
Building on the success of the HX851, Standard Horizon introduces a whole new level in safety and performance in a marine floating handheld VHF/GPS. The HX870S FLOATING CLASS D DSC VHF handheld features a 66-channel WAAS GPS receiver allowing the radio to transmit a DSC distress call with your vessels position or navigate to a waypoint. The new Oversized full dot matrix LCD (1.7” (W) x 1.7” (H) or 2.3” diagonal) and Easy to Operate Icon/Menu System makes this the most intuitive handheld on the market: DSC calling, position sharing, waypoint and route navigation, navigation to DSC distress call can all be performed with just a few simple steps making the HX870 perfect for everyday use or adding to your ditch bag. The radio is designed to be a work horse, starting with the die-cast chassis and the IPX8 submersible waterproof rating of 4.92 feet for 30 minutes, to the 6 Watts of transmit power and the long lasting 1800 mAh Li-Ion battery. The HX870 is also capable of entering and saving up to 200 waypoints and 20 routes, which may be selected for navigating to via the radios unique compass page which shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint. The compass page can also display the position of up to 9 vessels in proximity to you via the new GM (Group Monitoring) feature. Advanced features include: Full dot matrix display with channel names, Position request and Position report, 10 channel preset key selection, USB Data Port, GPS Position Logger, water activated SOS strobe light (the radio will turn on and flash SOS even if dropped in the water while the radio is turned off), NOAA Weather with Weather Alert, programmable Memory and Priority Scan, Dual and Tri Watch scan functions. The HX870 is supplied with a high capacity1800 mAh Li-Ion Battery, 110VAC and 12VDC 3-hour quick chargers, and an Alkaline Battery Tray (AAAx5). The HX870 is backed by an industry leading 3-year waterproof warranty.
Click Here for an informational video from Professional Kayak Fisherman Jim Sammons
HX870 - “FLOATING” 6 Watt Handheld VHF with internal GPS receiver
Building on the success of the HX851, Standard Horizon introduces a whole new level in safety and performance in a marine floating handheld VHF/GPS. The HX870S FLOATING CLASS D DSC VHF handheld features a 66-channel WAAS GPS receiver allowing the radio to transmit a DSC distress call with your vessels position or navigate to a waypoint. The new Oversized full dot matrix LCD (1.7” (W) x 1.7” (H) or 2.3” diagonal) and Easy to Operate Icon/Menu System makes this the most intuitive handheld on the market: DSC calling, position sharing, waypoint and route navigation, navigation to DSC distress call can all be performed with just a few simple steps making the HX870 perfect for everyday use or adding to your ditch bag. The radio is designed to be a work horse, starting with the die-cast chassis and the IPX8 submersible waterproof rating of 4.92 feet for 30 minutes, to the 6 Watts of transmit power and the long lasting 1800 mAh Li-Ion battery. The HX870 is also capable of entering and saving up to 200 waypoints and 20 routes, which may be selected for navigating to via the radios unique compass page which shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint. The compass page can also display the position of up to 9 vessels in proximity to you via the new GM (Group Monitoring) feature. Advanced features include: Full dot matrix display with channel names, Position request and Position report, 10 channel preset key selection, USB Data Port, GPS Position Logger, water activated SOS strobe light (the radio will turn on and flash SOS even if dropped in the water while the radio is turned off), NOAA Weather with Weather Alert, programmable Memory and Priority Scan, Dual and Tri Watch scan functions. The HX870 is supplied with a high capacity1800 mAh Li-Ion Battery, 110VAC and 12VDC 3-hour quick chargers, and an Alkaline Battery Tray (AAAx5). The HX870 is backed by an industry leading 3-year waterproof warranty.
| Antennas & Adapters | ||
| CAT460 | Rubber Duck Antenna |
|
| CN-3 | SMA to BNC Adaptor |
|
| Batteries & Trays | ||
| SBR-13LI 1800mAh Lithium Ion Battery | SBR-13LI 1800mAh Lithium Ion Battery |
|
| SBT-13 Alkaline Battery Tray | SBT-13 Alkaline Battery Tray |
|
| Battery Chargers | ||
| E-DC-19A | DC CABLE |
|
| SBH-12 | SBH-12 Charging Cradle |
|
| Belt Clips | Cases | ||
| SCH-11 | Handheld VHF Hanger Bracket |
|
| SHC-28 | Nylon Carrying Case |
|
| Cases & Belt Clips | ||
| CLIP-22 | Belt Clip |
|
| SHC-28 | Nylon Carrying Case |
|
| Microphones | ||
| CMP460 | Submersible Noice-Cancelling Speaker Mic |
|
| MH-73A4B | Submersible Speaker Microphone |
|
| SSM-14A | Submersible Commercial Grade Speaker Microphone with Heavy Duty Belt Clip |
|
| SSM-55A Earpice MIC | SSM-55A Earpice MIC |
|
| SSM-64A | Headset with boom mic, PTT and VOX operation |
|
| Mounting Hardware | ||
| SCH-11 | Handheld VHF Hanger Bracket |
|
In most cases it is necessary to adjust the radio’s squelch (SQL) level correctly. - Tap and release the SQL button once. - Immediately after releasing the SQL button use the Channel Up arrow to increase the SQL level several settings until the noise is gone.
When I press the talk button (PTT) my radio’s display will shut off and restart. Why does this happen?The radio will shut down to protect itself. This will happen when the radio is unable to get sufficient “energy” from the power source. - Make sure your battery is fully charged. - Most batteries even when well cared for may still need to be replaced after a few years. - If you have a voltmeter, you can check your battery for DC voltage. If you read 6 volts or below, the battery may have to be replaced. The closer to 0 volts, the worse the condition of your battery.
Can I leave my radio on the charger constantly?We recommend only leaving the radio in the charger for the amount of time it takes to fully charge the battery. Leaving the radio on charge for a few extra hours will not have an impact. However, leaving the battery to charge for more than a few days at a time can contribute to premature wear on your battery.
How do I store my radio to help protect my battery life?If you will be storing your radio for extended periods of time, it is recommended to remove the battery from the radio (some models). Leaving the battery attached to the radio will allow the radio to drain the battery slowly over time. Over a long enough period of time this can cause the battery to reach a state of discharge that it cannot recover from.
How do I remove the current MMSI number from my newer radio?For radios produced in 2018 and newer we can do this remotely! We would need you to email marinetech@yaesu.com with the following information: Name, Model Number, Serial Number, Current MMSI, and the Request Code. The radios Request Code you will find the radios Reset Menu under the option MMSI. All are needed to provide you a reset password via email. Typically, we can provide you a reset password in about 2 business days.
How can I check to see if my radio is receiving correctly? I don’t seem to hear anyone talking.Try switching the radio over to the Weather channel mode. When you are in this mode the USA will disappear and be replaced by WX on your screen. Make sure you check all 10 weather channels to find your local one. If you receive weather loud and clear, this is a good sign your radios receiver is working as the radio only has one receiver. You may be out of range of other boaters, or you may be listening on channels no one is actively using at the time.
The radio is asking me to enter my MMSI number. Where do I get this number?The MMSI numbers are a number you will need to register for through one of the registration agencies. For a U.S. registered MMSI number you can reach out to Boat US or United States Power Squadrons. For an MMSI number for international use you will have to register through the FCC. Boat US https://www.boatus.com/mmsi/ US Power Squadrons https://www.usps.org/ FCC https://www.fcc.gov/wireless/bureau-divisions/mobility-division/ship-radio-stations

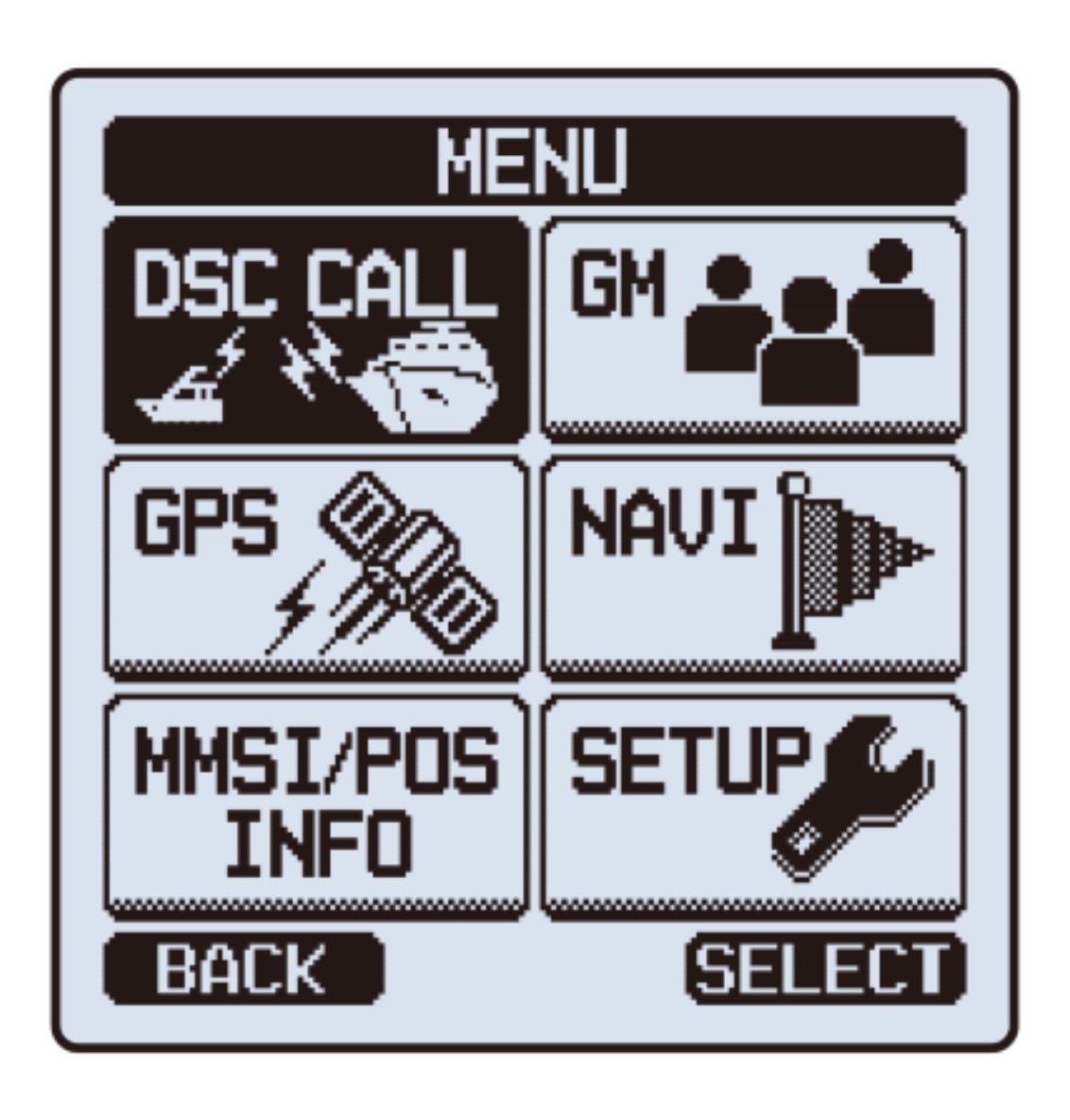

Forget about trying to memorize the owners manual. A brand new Easy to Operate Menu system makes this the most intuitive handheld on the market. DSC calling, position sharing, waypoint and route navigation, navigation to DSC distress call can all be performed with just a few simple steps.
GM (Group Monitor) using DSC Group Position CallThis new ADVANCED feature allows you to continuously track and display position information of up to 9 pre-selected vessels. Their position information is displayed on the compass page relative to your location on the display.

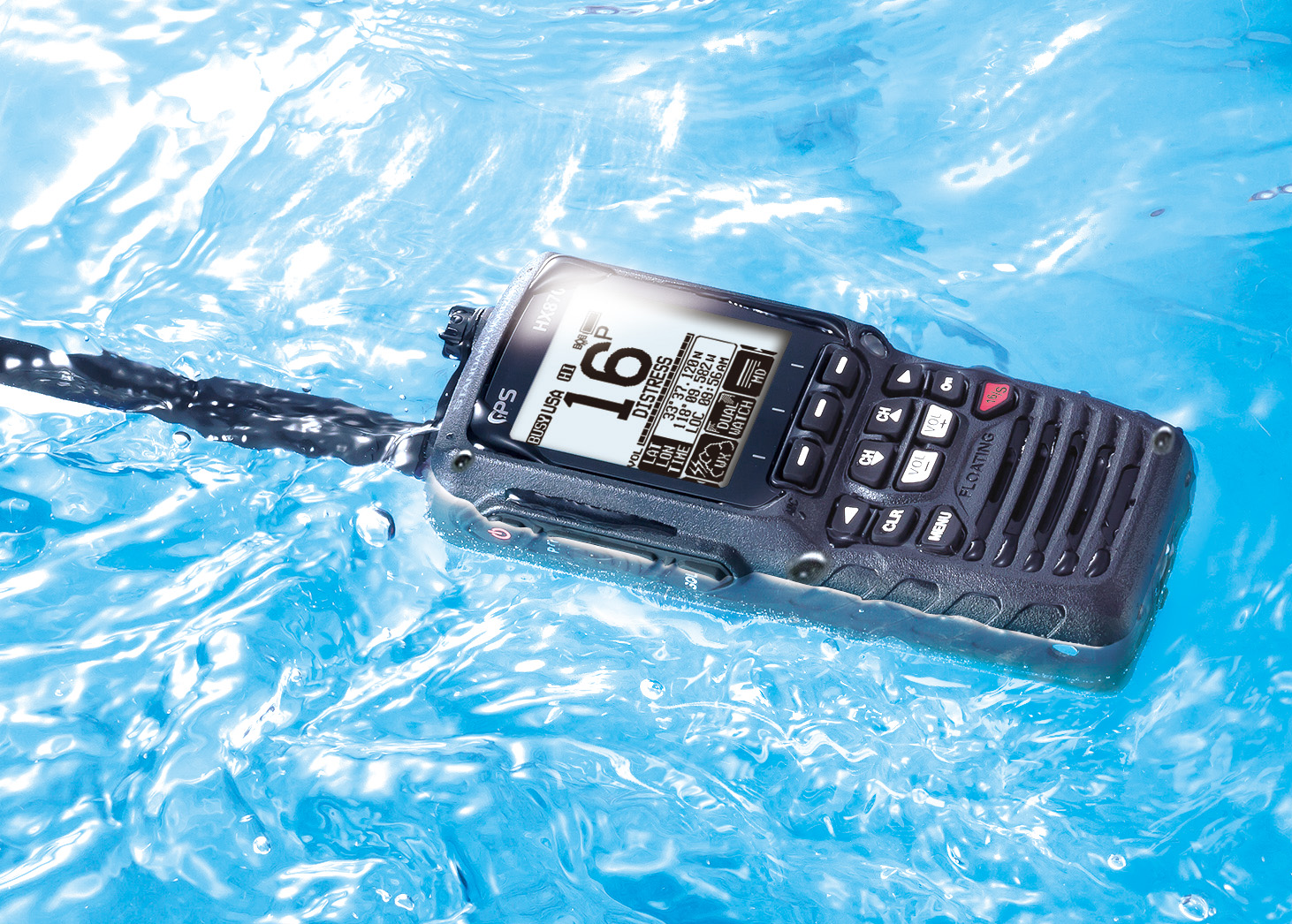

Water Activated Emergency Strobe LightIf the radio falls in the water an emergency strobe light is automatically activated, even when the unit is turned off!!! The strobe can be reconfigured to flash on and off, flash SOS, or set to stay on continuously.
Integrated 66 Channnel WAAS GPS receiverA highly sensitive 66 channel WAAS GPS receiver allows the HX870 to lock on to a position quickly and accurately. With position information displayed clearly on the display the user will be able to share position information using DSC and navigate to waypoints using the waypoint navigation feature of the radio.

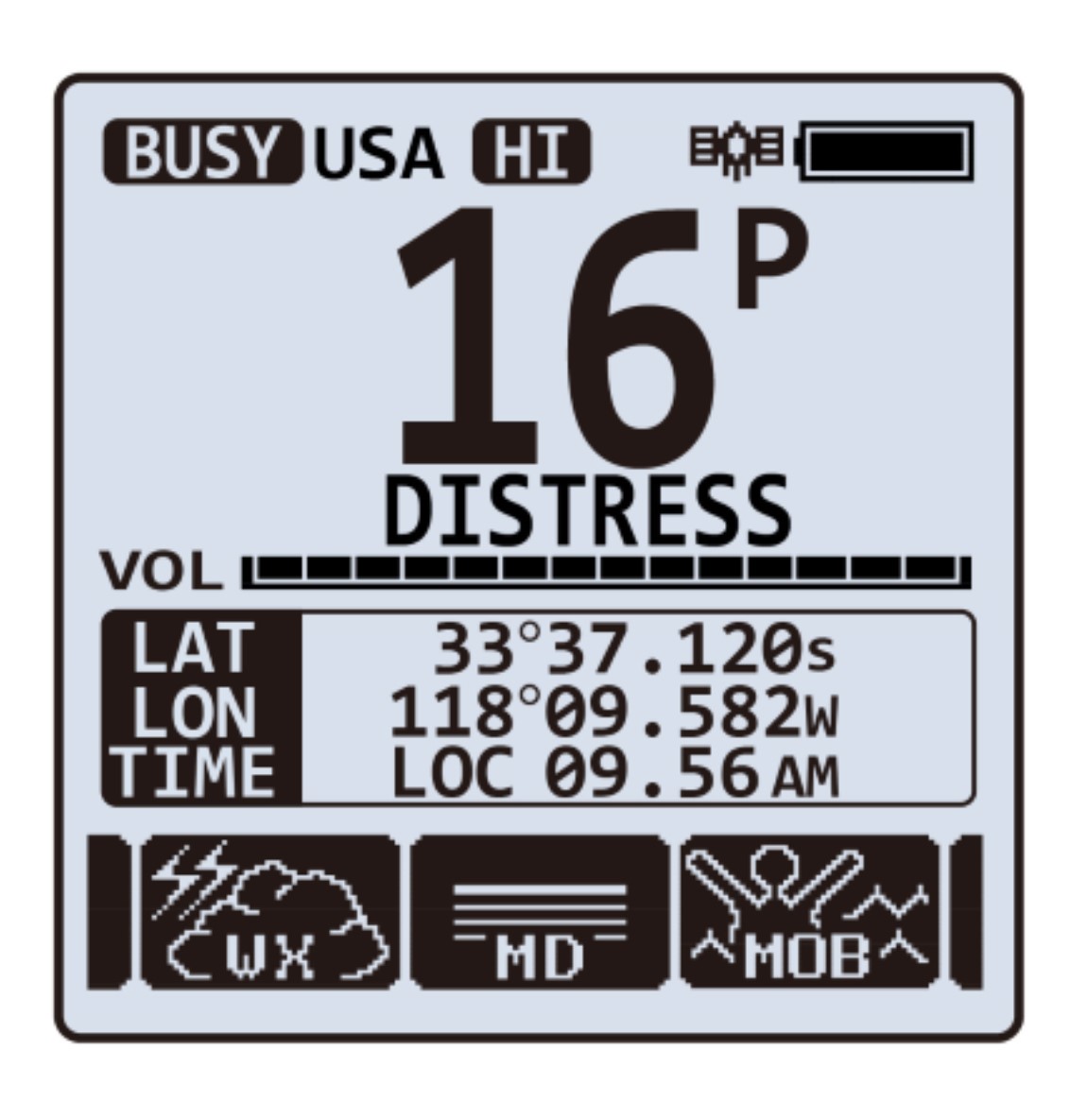

Oversized full dot matrix displayThe HX870 boasts one of the largest displays in a hand held VHF radio. Measuring 1.7" wide by 1.7" tall, or 2.3" diagonal. With a larger display, greater (dot matrix) resolution, and a super bright backlight there will be no mistaking the information displayed on the face of the radio day or night.
