Click Image to Zoom InHX350SAS1S1

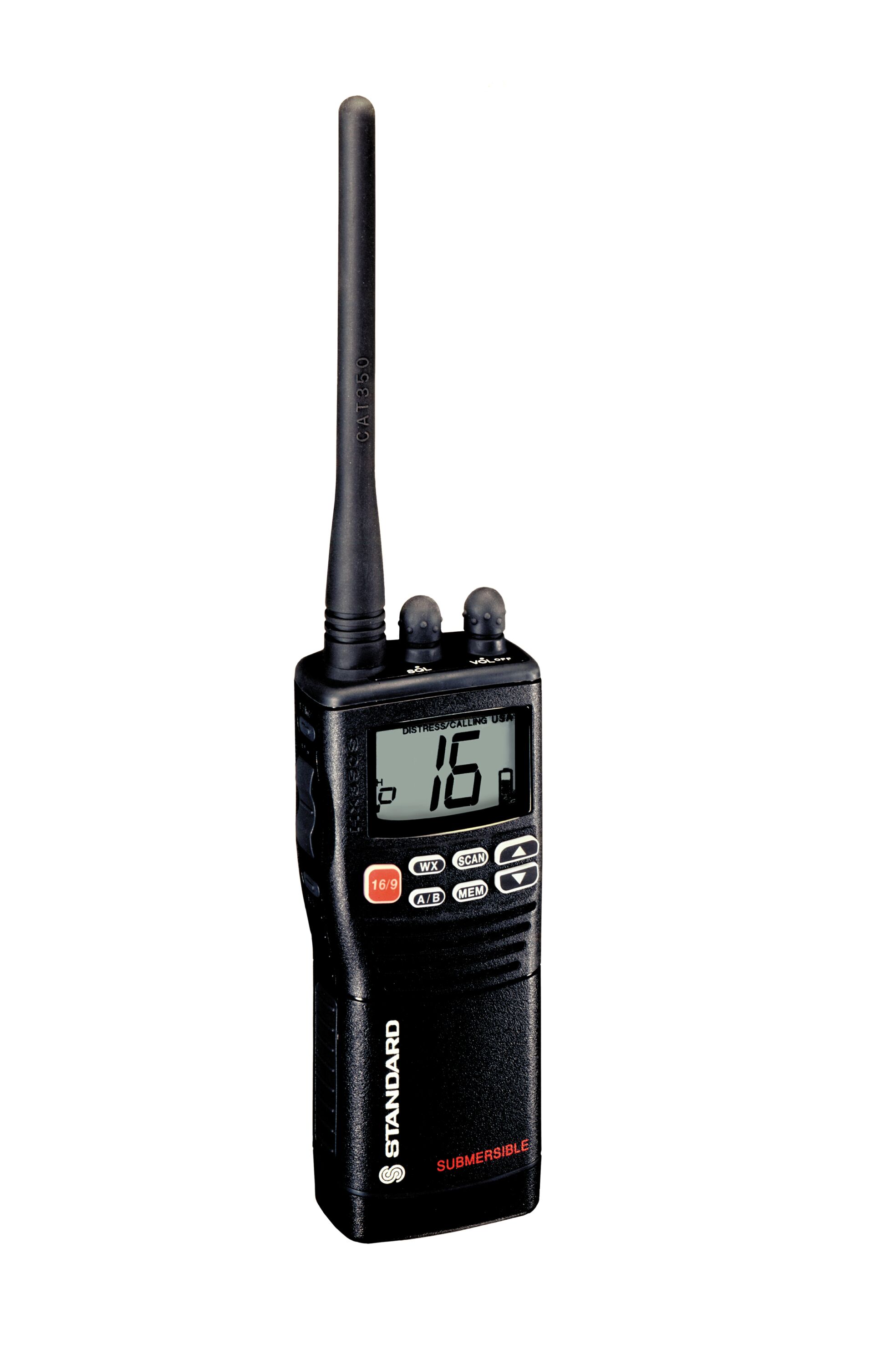

Intrinsically Safe Submersible 5 Watt Marine VHF
All the features and functions of the award winning HX350S and meets the requirements of ANSI/UL 913-88 for Division I, Class 1, Groups C & D, Class II, Groups E, F & G, and Class III for hazardous locations.
| Antennas & Adapters | ||
| CAT350 | Rubber Duck Antenna | |
| CAW350 | 3 Antenna Adapter to Ship s Antenna | |
| Batteries & Trays | ||
| CBT350 | Alkaline Battery Tray | |
| CNB350 | 7.2V 1100 mAh NiCad Battery | |
| CNB350AS | Intrinsically Safe 7.2V 1100mAh NiCad Battery | |
| Battery Chargers | ||
| CAW240 | 12 VDC Power Cord | |
| CCA250 | Charging Bucket | |
| CSA240AB | 220 VAC Rapid Charger | |
| CSA280 | 110 VAC Rapid Charger | |
| CWC230A | 110 VAC Trickle Charger | |
| CWC232 | 110/220 VAC Trickle Charger | |
| Cases & Belt Clips | ||
| LCC250 | Black Leather Case | |
| MCC250 | Black Nylon Case | |
| MCC350 | Black Neoprene Case | |
| Microphones | ||
| CMP350 | Submersible Noice-Cancelling Speaker Mic | |
| CMP625 | Miniature Speaker/Mic | |
Yes, the accessory is called a CAW350. It consists of 3' foot of RG-58 coaxial cable with a stud connector that connects to the HX350S and a SO-239 that connects to the ships antenna.
I cannot change channels on the radio.The radio has a function called Key Lock. Pressing and holding the button on the left side of the radio that has a key symbol operates this feature. If the LCD on the radio has a key symbol, the radio is in the key lock mode and this key must be held until the symbol is removed.
The unit is locked up and the key lock is not on.Try resetting the microprocessor by turning the unit off, then press and hold the WX and SCAN key while turning the radio back on.
The radio says submersible, what does that mean?All of our submersible radios meet the JIS7 waterproofing standard. This means the radios were tested to withstand being submersed to 3 feet for 30 minutes.
I submerged the radio and now I do not get any audio from the speaker.If the radio is submersed, water will fill up in the speaker compartment preventing the speaker from transmitting any audio. This does not damage the radio and water will not penetrate the radio case. To solve this problem simply turn the radio upside down and shake all the water out of the speaker compartment, you may also have to blow out any remaining water to fully restore the speaker.
I have submerged the radio and now it is stuck in transmit.If the radio is submersed and water penetrates the mic jack cover, water may get into the mic jack and short out the PTT on the radio. This does not damage the radio and water will not penetrate the radio case. To solve this problem simply turn the radio upside down and shake all the water out of the mic jack, you may also have to blow out any remaining water to fully restore the radio.
STANDARD HORIZON's new HX350SAS is no ordinary 5 watt portable VHF with all USA, Canadian and International channels. The HX350SAS is intrinsically safe, incredibly rugged, and it's submersible. Despite its simplicity of operation, the HORIZON HX350SAS has all the essential operational features any crew could ask for.
INTRINSICALLY SAFEThe HX350SAS handheld with CNB350AS battery pack, and the optional noise-canceling waterproof speaker microphone, model CMP350 meet the requirements of ANS/UL 913-88 for Division 1, Class 1, Groups C & D, Class ll, Groups E, F & G, and Class lll hazardous locations.
RUGGED DURABLE CONSTRUCTIONBuilding a submersible radio for the professional user is no simple task! Horizon utilizes a high impact non-corrosive case, a display lens, waterproof gasketing and shock tested PCBs. Engineered for unparalleled durability and reliability, the Horizon HX350SAS exceeds submersion of 3 feet for 30 minutes.
SIMPLE AND LOGICALA whopping 1100mAh NiCad battery is standard equipment on the HX350SAS providing an incredible 10-hour duty cycle. Additionally, an easy to see battery shaped flag in the LCD, works like a dynamic "gas gauge", indicating relative time remaining.
FEATURESDetachable Antenna
STANDARD HORIZON provides a unique 3 year Waterproof Warranty in the intrinsically safe handheld which states: "If your radio fails for any reason, including water damage, during normal use in the first three years, Horizon will repair or replace it without hassle or charges. If it fails thereafter, in normal use, STANDARD HORIZON's Lifetime Flat Rate Service Program will protect it.
