Rated "BEST CHOICE" by Practical Sailor October 2009

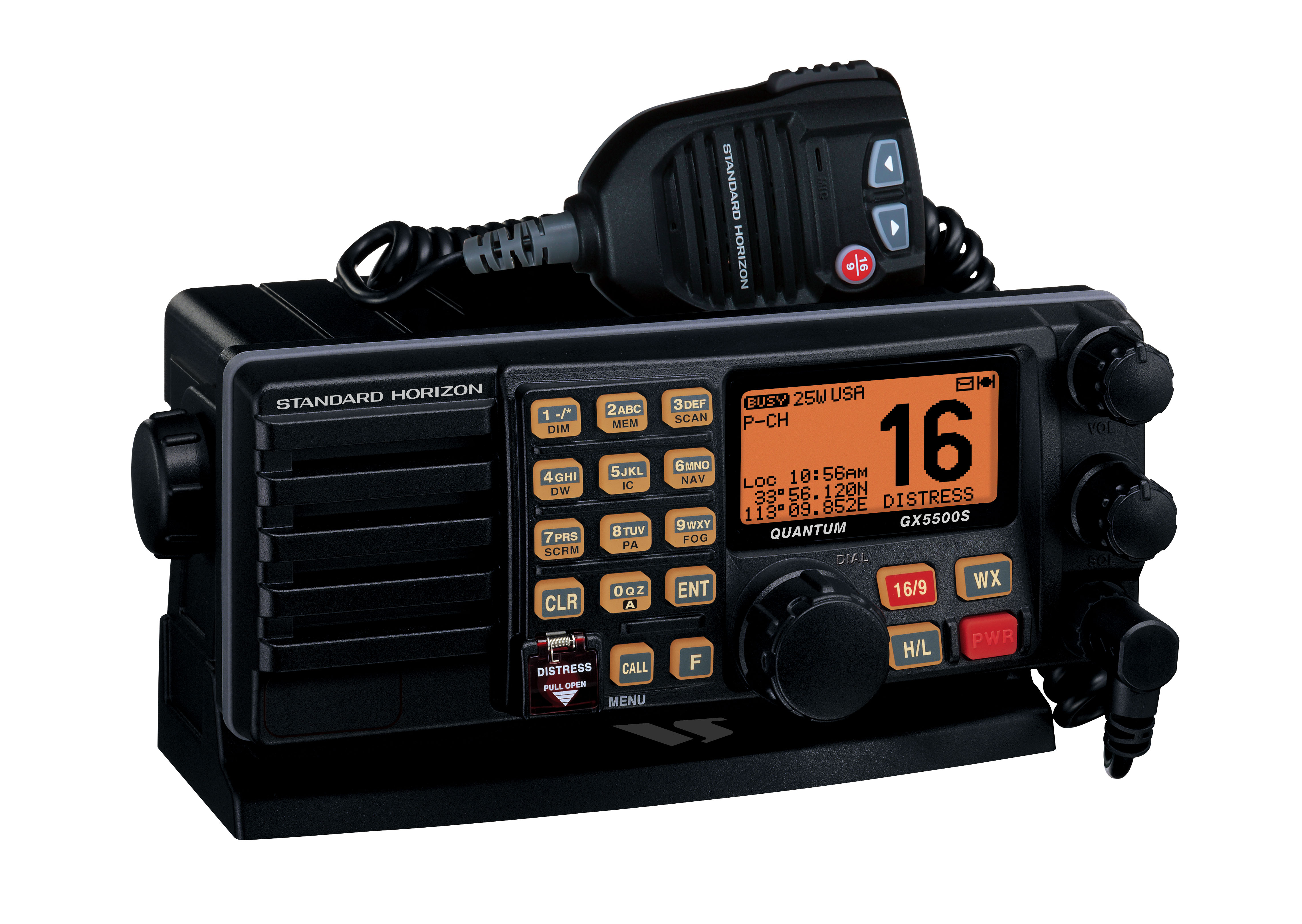

Commercial grade with alpha-numeric keypad and 30W PA/hailer with Listenback
Rated "BEST CHOICE" by Practical Sailor October 2009
Commercial grade with alpha-numeric keypad and 30W PA/hailer with Listenback
| Installation Hardware | ||
| MEK-4 | Front Panel Microphone Extension Kit |
|
| Mounting Hardware | ||
| MMB-84 | Flush Mounting Bracket |
|
| PA Horns | ||
| 220SW | 4 Ohm 30W Small PA Horn |
|
| 240SW | 4Ohm, 30W, 5" x 7" PA Horn |
|
| PC Programming | ||
| CT-62 | CT-62PC programming cable | |
| CT-99 | CT-99 | |
| Programming and Installation | ||
| CT-62 | CT-62PC programming cable | |
| Second Station | ||

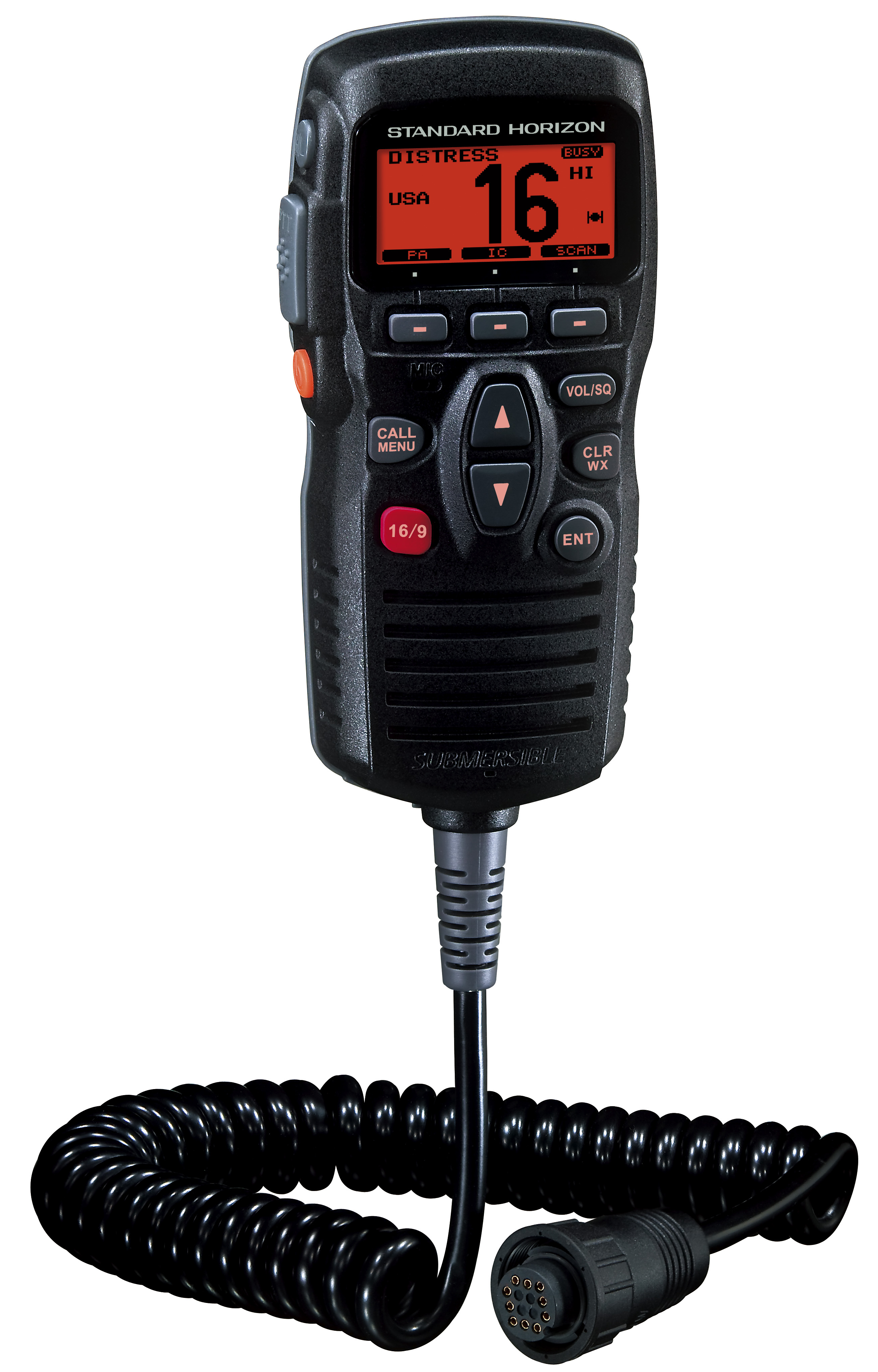

| CMP30 (BLACK) | CMP30 (BLACK) |
|

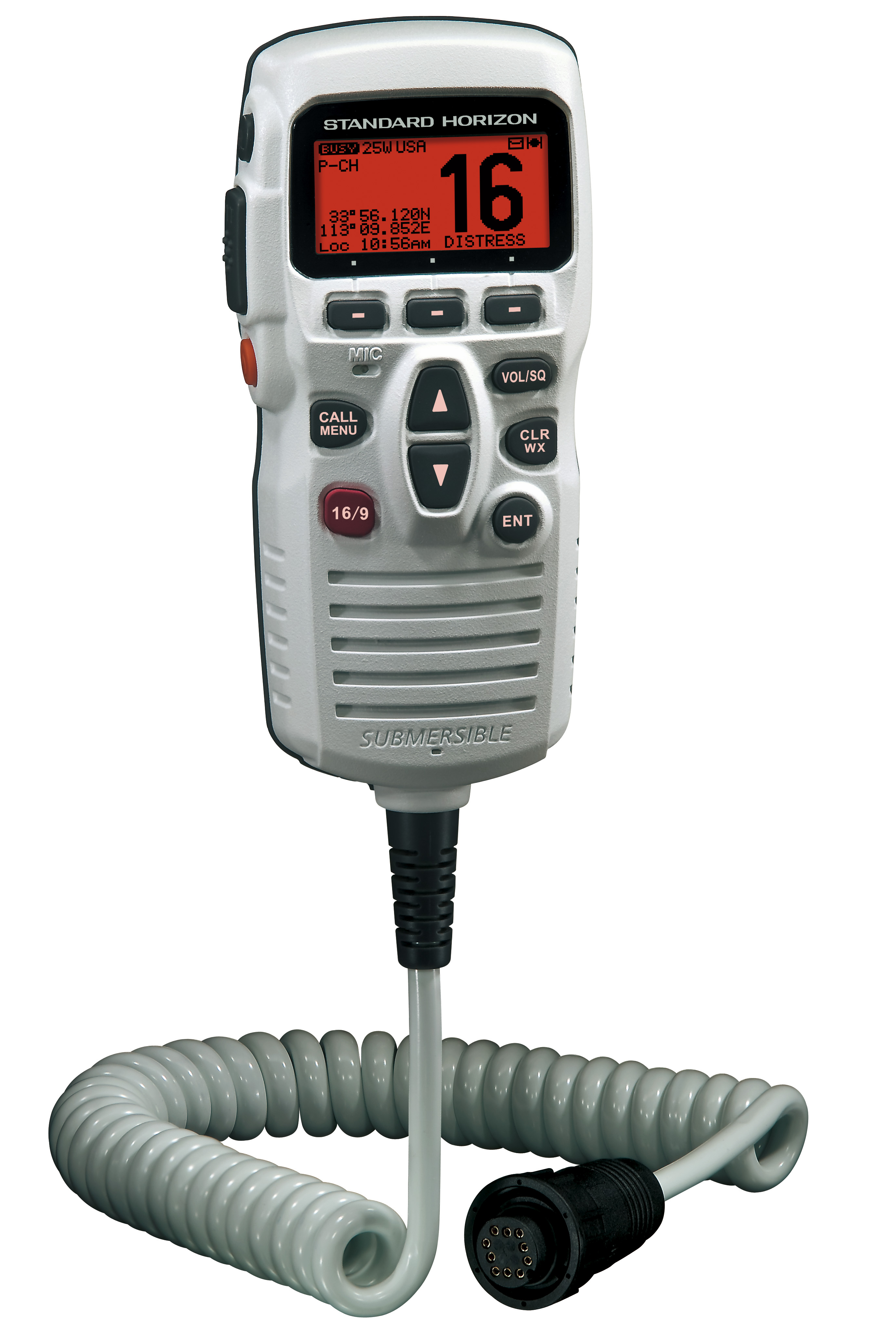

| CMP30 (WHITE) | CMP30 (WHITE) |
|
| CMP31B (Black) | CMP31B (Black) |
|
| CMP31W (White) | CMP31W (White) |
|
| CT-100 | 23' Extension Cable for CMP25 / CMP30 / CMP31 / SSM-70H / SCU-30 |
|
| Speakers | ||
| MLS-300B | BLACK SPEAKER |
|
| MLS-300W | WHITE SPEAKER |
|
| MLS-310B | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (BLACK) |
|
| MLS-310W | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (WHITE) |
|
| Voice Scrambler | ||
| CVS2500 | Voice Scrambler |
|
The keypad allows quick access to most often used functions, input of DSC names, manual entering of GPS position and direct entry of channels.
Class D Digital Selective CallingThe GX5500S meets the irequirements for Class D with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels. The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency and Safety.
Commerical grade 80dB receiverAdvanced receiver technology rejects the reception of unwanted signals from pagers and other unwanted VHF frequencies.
Audio tone controlThis unique feature allows the treble and bass of the speaker audio to be adjusted for best listening. The effect is similar to adjusting the treble and bass controls on a stereo.
Oversized knobs and scanningRadio operation and channel selection is made easy (even with gloves) with the oversized volume, squelch and channel selector knobs. The GX5500S has Dual Watch, which scans a selected channel and ch16 simultaneously allowing you to monitor a channel and not miss calls made on ch16. Scan and Priority Scan features are user programmable.
30W PA and Fog signallingThe GX5500S includes a 30W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel is can be heard when in the PA or Fog mode.
Front or rear panel remote speaker mic capableThe standard hand microphone has a built in speaker and uses Noise canceling technology called ClearVoice for unsurpassed communications even in the noisiest environments. This microphone also has the capability to directly switch between channels 16 and 9, change channels with the large UP/Down keys and can be removed for storage. The microphone may be remoted to the rear panel with the MEK-4 extension kit for custom installations. The MEK-4 contains 20Ft or routing cable, Stainless Steel panel mount and screws.
RAM3+ Second Station microphone inputsAll of the features of the main radio can be accessed through the optional RAM3+ Second Station Microphone. With a RAM3+ connected, the GX5500S becomes an intercom system allowing two way private communications.
3-Year waterproof warrantyIf the GX5500S fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it.
