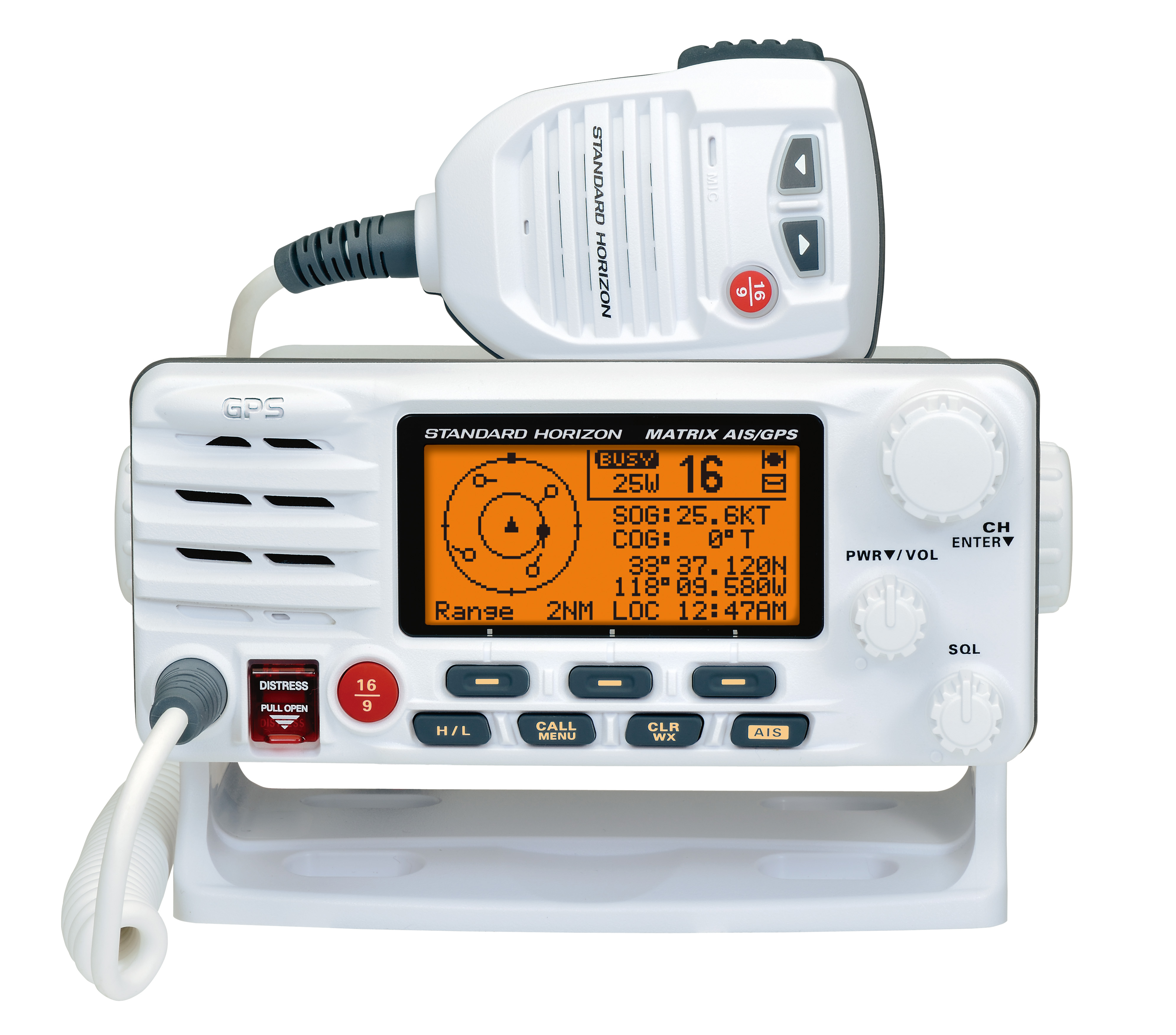

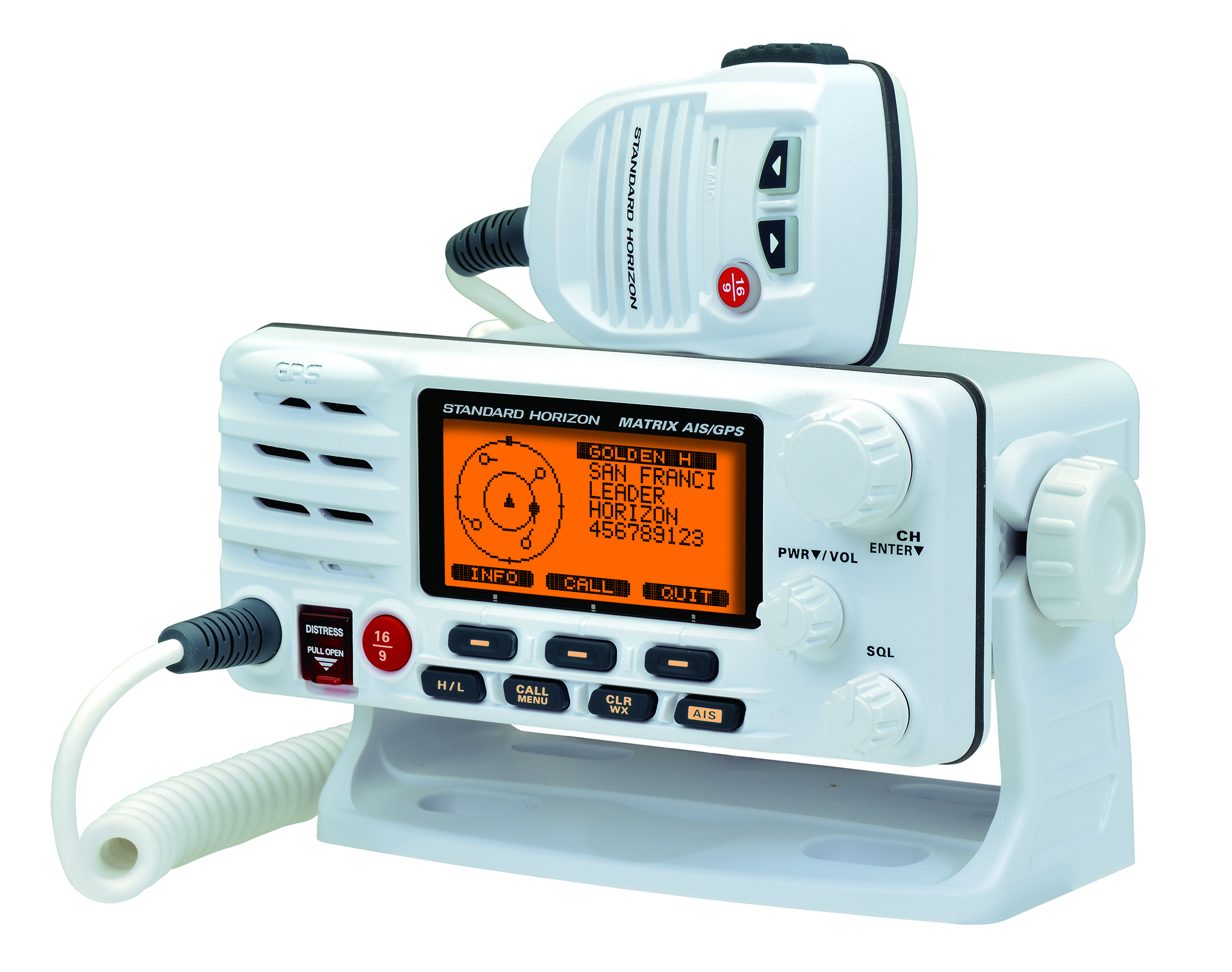

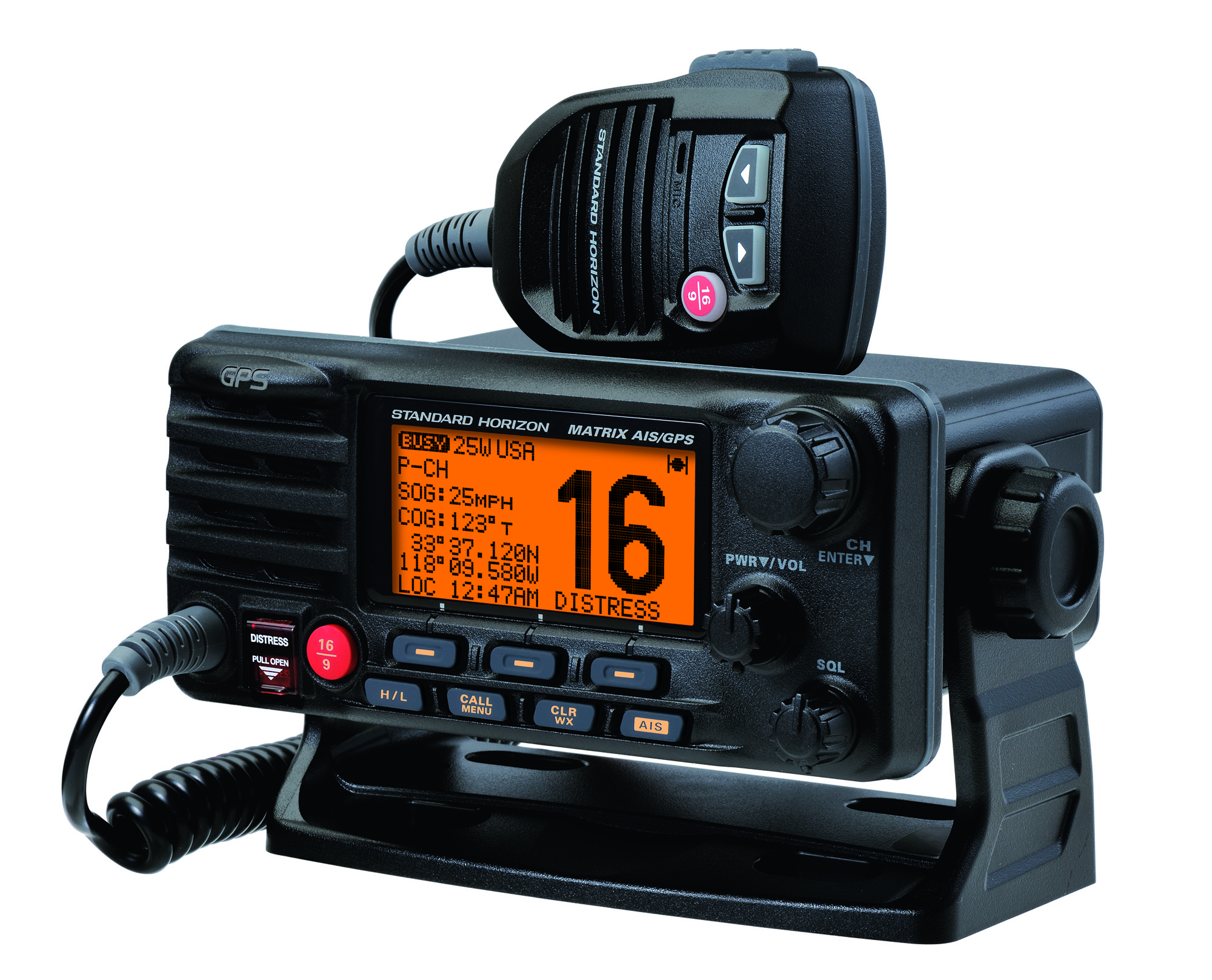

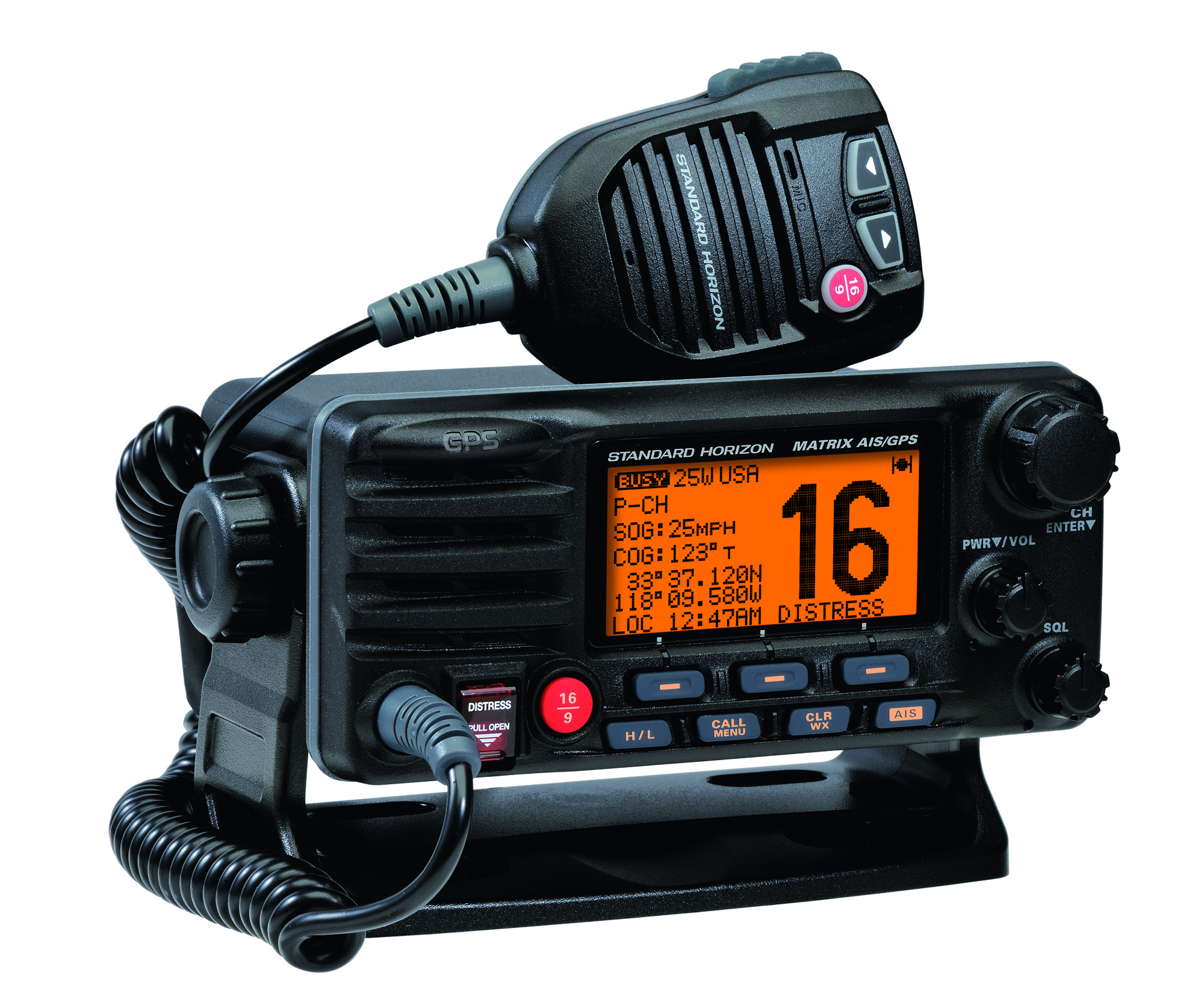

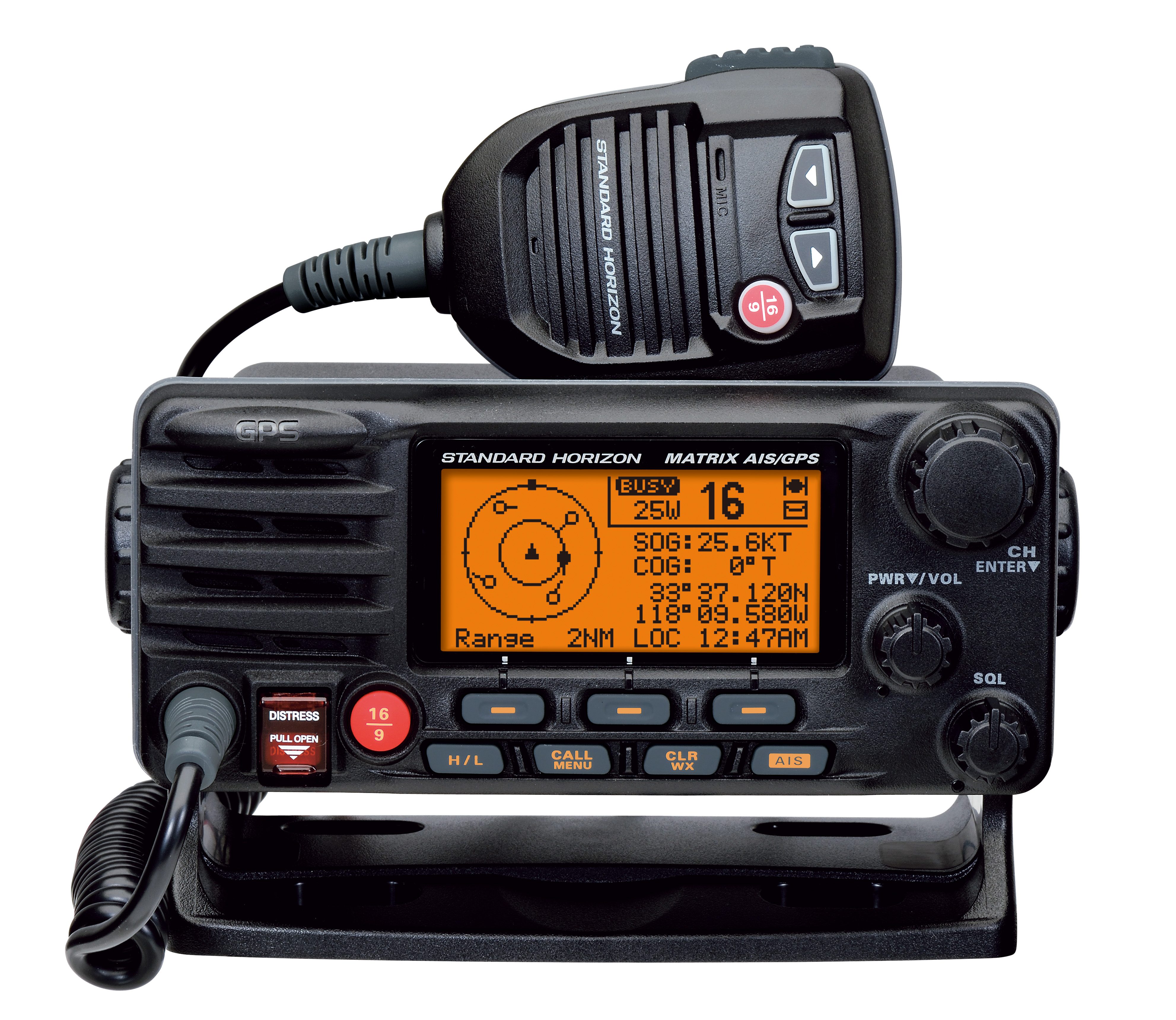

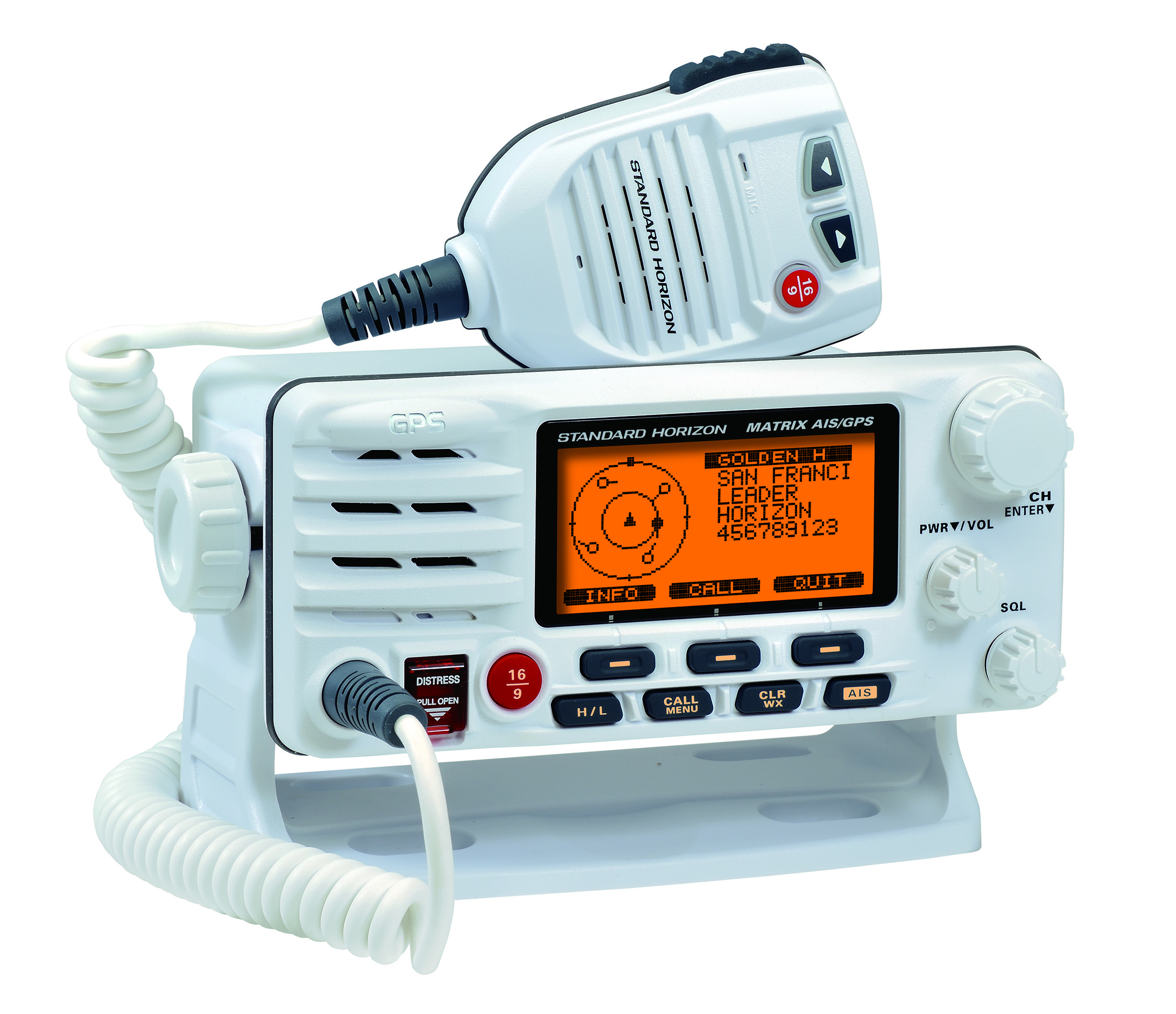

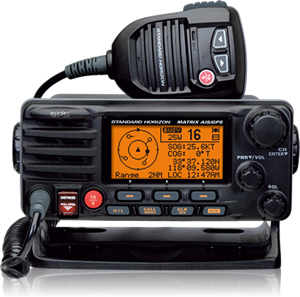

Click Image to Zoom InThe Matrix AIS/GPS (GX2200) makes AIS simple and easy right out of the box!!!
.jpg)
Now with an Integrated 66 Channel GPS receiver and two integrated AIS receivers getting connected has never been easier. Having a VHF with DSC and integrated AIS/GPS provides REAL peace of mind in high traffic areas.
The Matrix AIS/GPS (GX2200) makes AIS simple and easy right out of the box!!!
Now with an Integrated 66 Channel GPS receiver and two integrated AIS receivers getting connected has never been easier. Having a VHF with DSC and integrated AIS/GPS provides REAL peace of mind in high traffic areas.
| Mounting Hardware | ||
| MMB-84 | Flush Mounting Bracket |
|
| PA Horns | ||
| 220SW | 4 Ohm 30W Small PA Horn |
|
| 240SW | 4Ohm, 30W, 5" x 7" PA Horn |
|
| Rain/Dust Covers | ||
| HC2000 DUST COVER | HC2000 DUST COVER |
|
| Second Station | ||
| CMP31B (Black) | CMP31B (Black) |
|
| CMP31W (White) | CMP31W (White) |
|
| CT-100 | 23' Extension Cable for CMP25 / CMP30 / CMP31 / SSM-70H / SCU-30 |
|
| Speakers | ||
| MLS-300B | BLACK SPEAKER |
|
| MLS-300W | WHITE SPEAKER |
|
| MLS-310B | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (BLACK) |
|
| MLS-310W | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (WHITE) |
|
| Voice Scrambler | ||
| CVS2500 | Voice Scrambler |
|
For radios produced in 2018 and newer we can do this remotely! We would need you to email marinetech@yaesu.com with the following information: Name, Model Number, Serial Number, Current MMSI, and the Request Code. The radios Request Code you will find the radios Reset Menu under the option MMSI. All are needed to provide you a reset password via email. Typically, we can provide you a reset password in about 2 business days.
How can I check to see if my radio is receiving correctly? I don’t seem to hear anyone talking.Try switching the radio over to the Weather channel mode. When you are in this mode the USA will disappear and be replaced by WX on your screen. Make sure you check all 10 weather channels to find your local one. If you receive weather loud and clear, this is a good sign your radios receiver is working as the radio only has one receiver. You may be out of range of other boaters, or you may be listening on channels no one is actively using at the time.
The radio is asking me to enter my MMSI number. Where do I get this number?The MMSI numbers are a number you will need to register for through one of the registration agencies. For a U.S. registered MMSI number you can reach out to Boat US or United States Power Squadrons. For an MMSI number for international use you will have to register through the FCC. Boat US https://www.boatus.com/mmsi/ US Power Squadrons https://www.usps.org/ FCC https://www.fcc.gov/wireless/bureau-divisions/mobility-division/ship-radio-stations
The GX2200 MATRIX AIS/GPS, features a 66 channel WAAS GPS antenna integrated into the front panel of the radio, now there is no need to hassle with wiring the radio to a GPS for DSC (Digital Selective Calling) or AIS (Automated Identification System). Out of the box and ready to go, acquiring AIS and AIS SART targets, DSC calling, position sharing, waypoint navigation, and navigation to DSC distress calls can all be performed with just a few simple steps.
AIS / AIS SART target display: MMSI, Call Sign, Ship Name, BRG, DST, SOG and COGThe MATRIX AIS/GPS displays AIS target information (MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG) allows you to contact an AIS Ship directly using DSC, shows your vessels position in relation to AIS targets and alerts you when an AIS ship may be approaching too close to your location via the Closest Point of Approach (CPA) Alarm.
30 Watt PA/Loud Hailer with preprogrammed fog signals and listen backThe MATRIX AIS/GPS includes a 30W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes and the AIS Display may be accessed and used. In addition, the MATRIX AIS/GPS allows you to start a fog horn and then view the AIS page simultaneously.
Programmable CPA or TCPA collision avoidance alarmsThe GX2200 Matrix AIS/GPS shows your vessels position in relation to AIS targets and alerts you when an AIS ship may be approaching too close to your location via the Closest Point of Approach (CPA) Alarm, or Time to Closest Point of Approach (TCPA) Alarm.
RAM3+ Second Station CompatibleNeed to remotely control a VHF from your cockpit of fly bridge? The MATRIX AIS/GPS is RAM3+ remote mic capable to control all VHF and DSC functions at a second station. In addition, the MATRIX AIS/GPS can show AIS displays and vessel information. The Intercom feature allows communication between the main radio and the remote station.
Waypoint NavigationThe MATRIX AIS/GPS is capable of entering and saving up to 100 waypoints. These waypoints may be selected and navigated to by using a unique navigation compass display that shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint.
It's built better so it's backed betterBecause the GX2200 is built better, it’s back better. If your Standard Horizon GX2200 ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period! If it fails thereafter in normal use for the life time of the product it is covered by Standard Horizon’s Lifetime Flat Rate Service and Customer Loyalty Programs.
