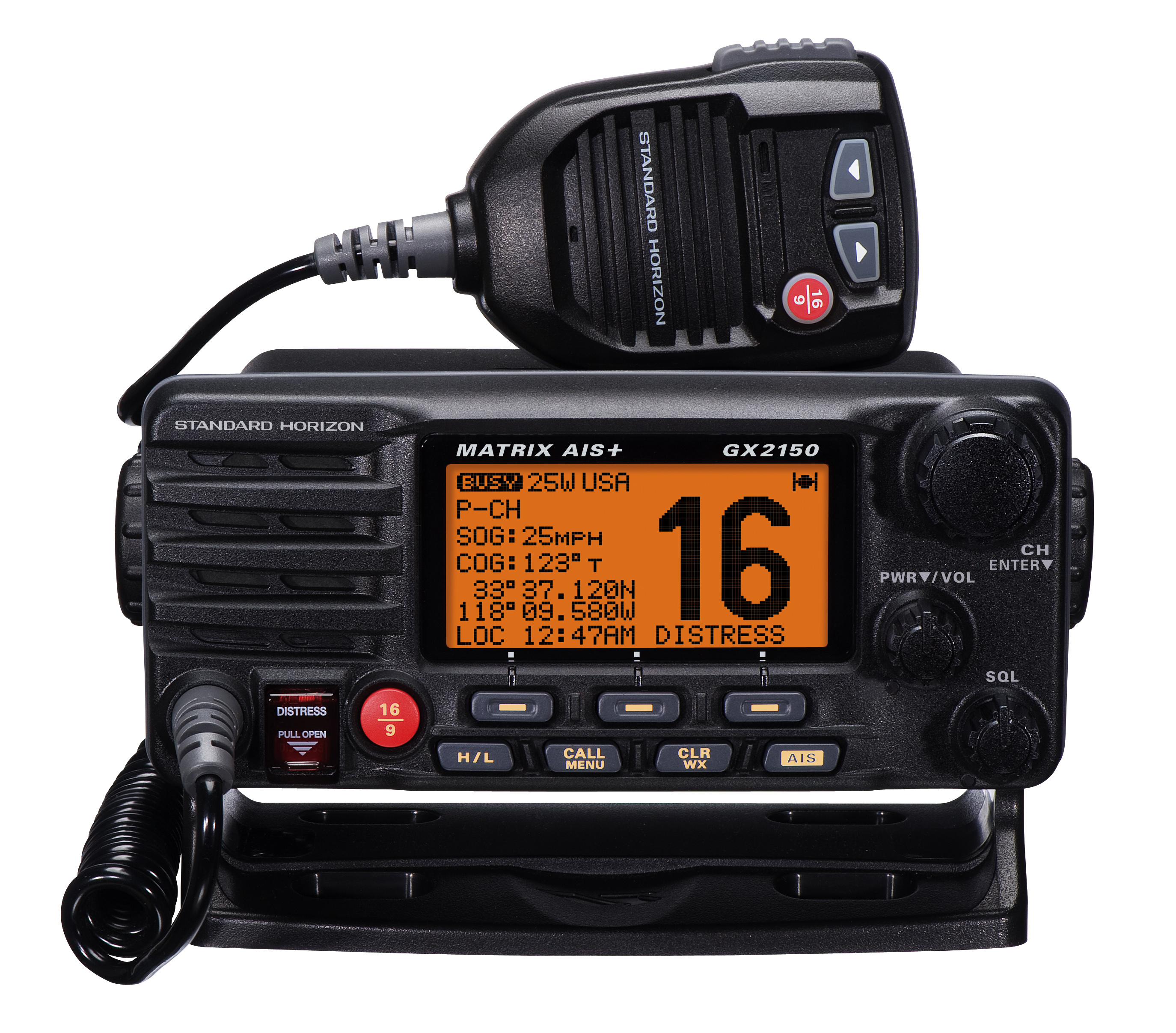

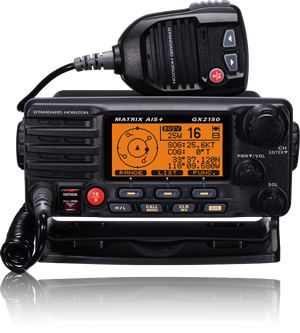

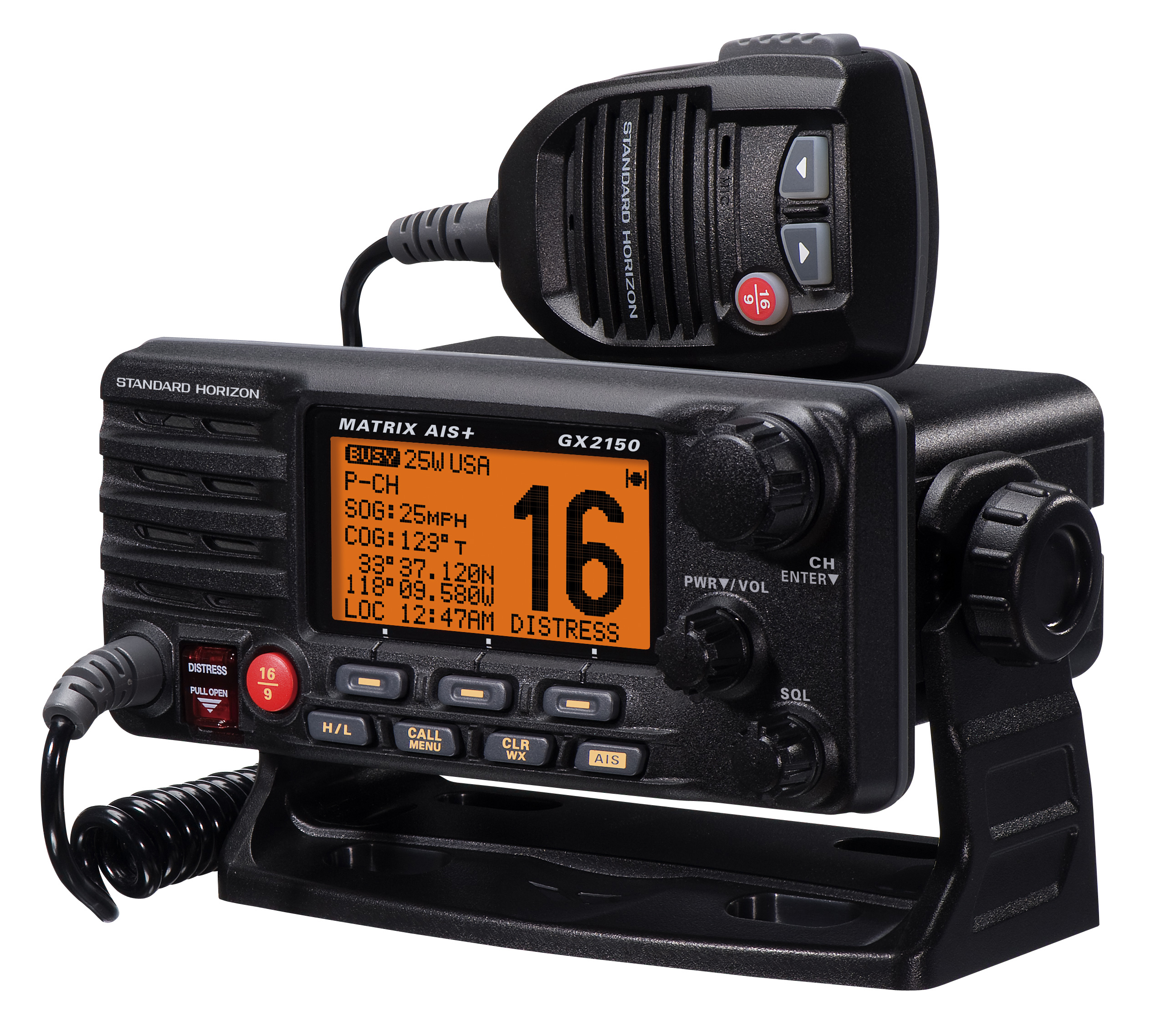

Click Image to Zoom InClass D VHF with Built-in Dual Channel AIS receiver, 30W PA/Fog and RAM3 capable
.jpg)
Click here for document explaining GX2150 updates compared to GX2100.
*when connected to a GPS
Class D VHF with Built-in Dual Channel AIS receiver, 30W PA/Fog and RAM3 capable
Click here for document explaining GX2150 updates compared to GX2100.
*when connected to a GPS
| Mounting Hardware | ||
| MMB-84 | Flush Mounting Bracket |
|
| PA Horns | ||
| 220SW | 4 Ohm 30W Small PA Horn |
|
| 240SW | 4Ohm, 30W, 5" x 7" PA Horn |
|
| PC Programming | ||
| CT-62 | CT-62PC programming cable | |
| CT-99 | CT-99 | |
| Programming and Installation | ||
| CT-62 | CT-62PC programming cable | |
| Rain/Dust Covers | ||
| HC2000 DUST COVER | HC2000 DUST COVER |
|
| Second Station | ||
| CMP30 (BLACK) | CMP30 (BLACK) |
|
| CMP30 (WHITE) | CMP30 (WHITE) |
|
| CT-100 | 23' Extension Cable for CMP25 / CMP30 / CMP31 / SSM-70H / SCU-30 |
|
| Speakers | ||
| MLS-300B | BLACK SPEAKER |
|
| MLS-300W | WHITE SPEAKER |
|
| MLS-310B | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (BLACK) |
|
| MLS-310W | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (WHITE) |
|
| Voice Scrambler | ||
| CVS2500 | Voice Scrambler |
|
Try switching the radio over to the Weather channel mode. When you are in this mode the USA will disappear and be replaced by WX on your screen. Make sure you check all 10 weather channels to find your local one. If you receive weather loud and clear, this is a good sign your radios receiver is working as the radio only has one receiver. You may be out of range of other boaters, or you may be listening on channels no one is actively using at the time.
How do I remove the current MMSI number from my older radio?For radios produced before 2018 they must be sent in for service. These older radios required dealer cables and software to remove the current MMSI number. Unfortunately, there is no list of dealers who offer this service.
The radio is asking me to enter my MMSI number. Where do I get this number?The MMSI numbers are a number you will need to register for through one of the registration agencies. For a U.S. registered MMSI number you can reach out to Boat US or United States Power Squadrons. For an MMSI number for international use you will have to register through the FCC. Boat US https://www.boatus.com/mmsi/ US Power Squadrons https://www.usps.org/ FCC https://www.fcc.gov/wireless/bureau-divisions/mobility-division/ship-radio-stations
When I press the talk button (PTT) my radio’s display will shut off and restart. Why does this happen?The radio will shut down to protect itself. This will happen when the radio is unable to get sufficient “energy” from the power source. - On a vehicle installation you want to check the voltage at the radios rear DC connector. It should be about 13.8 VDC. If this voltage at the radio drops below 11 VDC, the radio will shut down. - Consider reducing the DC cables from the radio as direct to the battery as possible. - Try to use a higher gauge (thicker) cable if the DC must travel long distances.

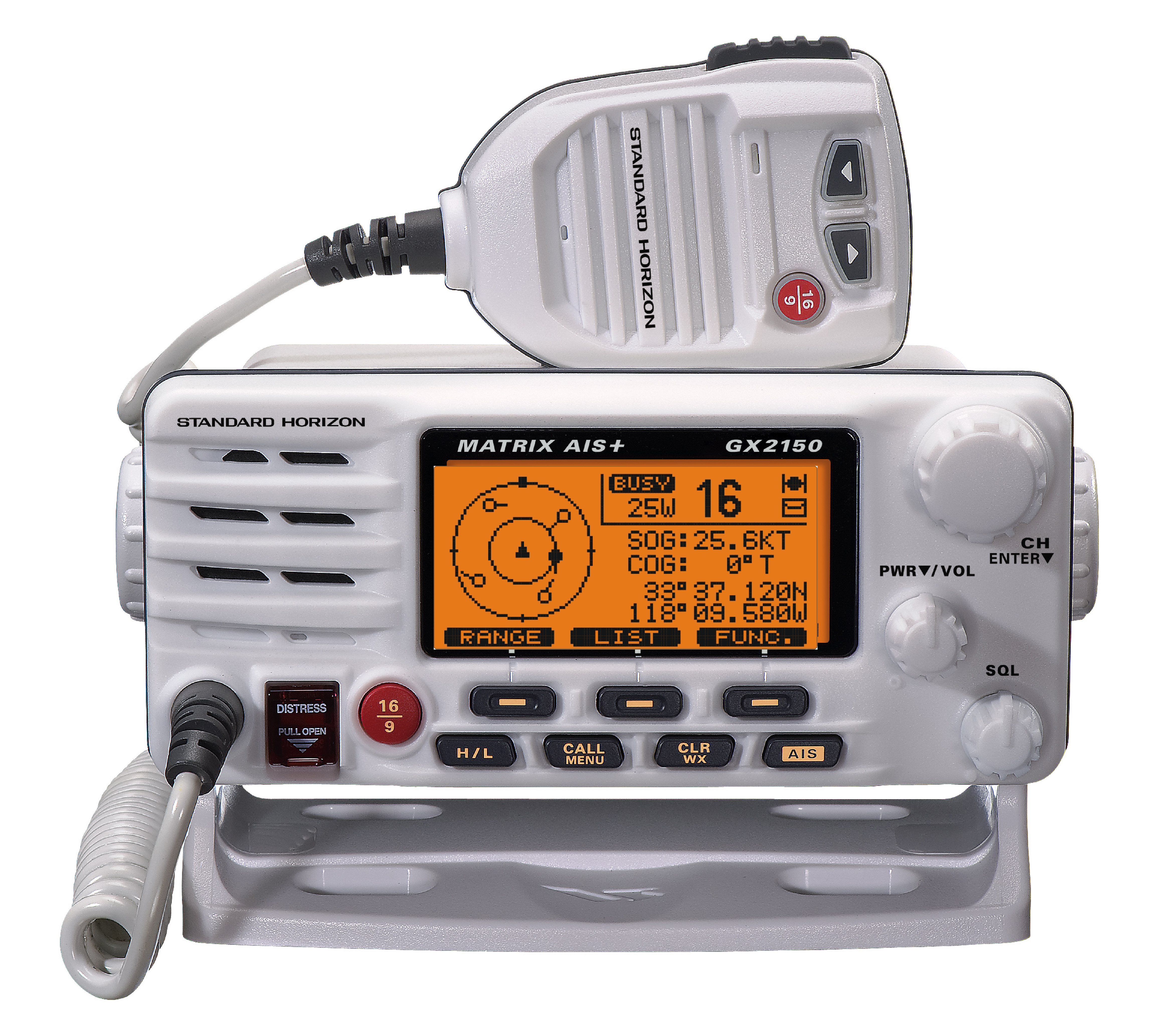

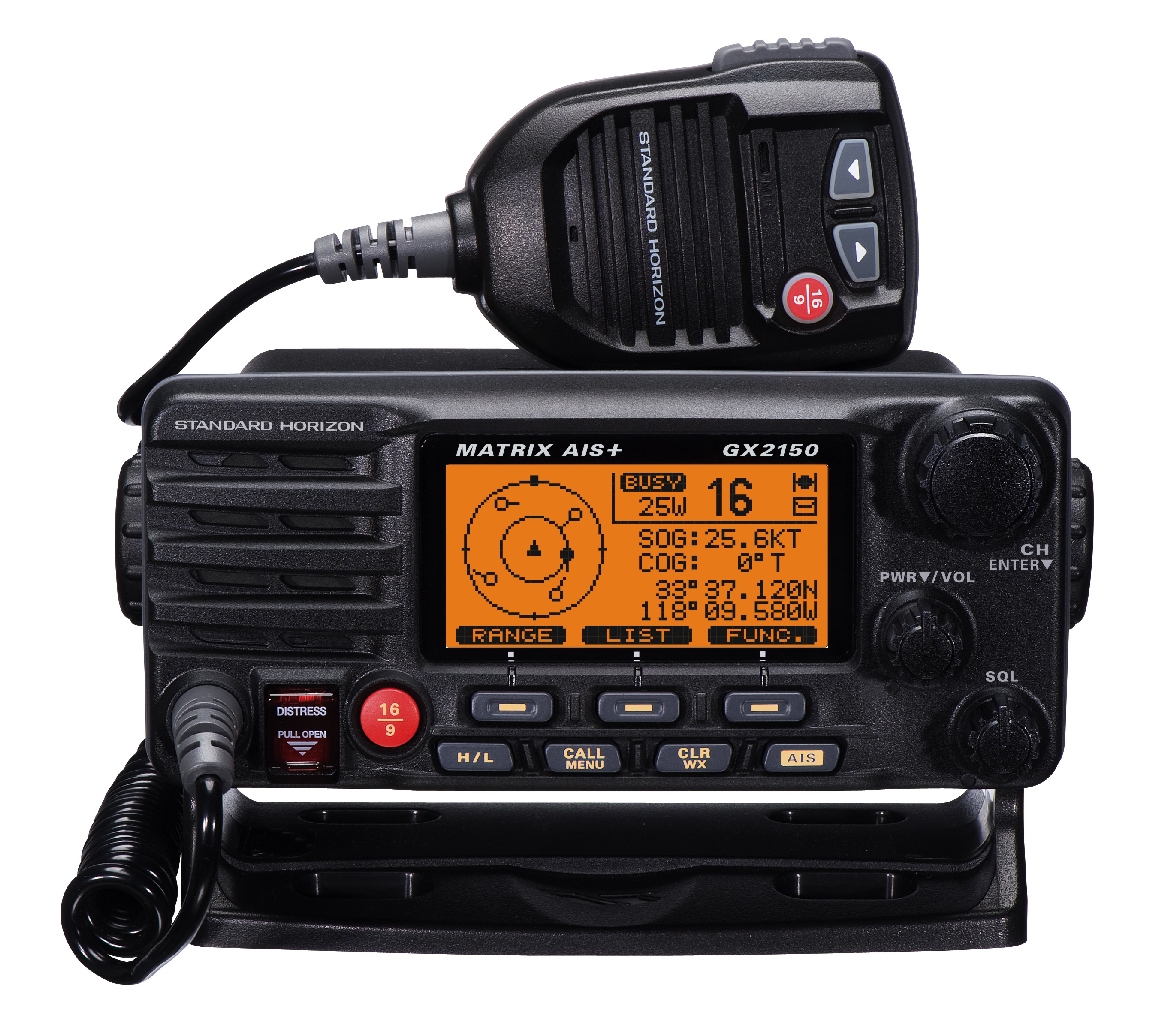

The MATRIX AIS+ features have been updated to meet your demands: BAUD RATE SELECTION: The MATRIX AIS+ has a menu selection which allows the user to change the GPS input and DSC/AIS output baud rate. This change was made in response to requests from the market to resolves connection problems of certain plotters (RayMarine C Classic Series and Lowrance HDS 5 & 7) which only have one comport. PA/Fog and AIS display The MATRIX AIS+ can use the PA or Fog horn and use the AIS display at the same time. GPS Status Display If a chart plotter with GSA and GSV NMEA sentences is connected to the GX2150, the radios display can be set up to show a satellite numbers and related signal strengths. AIS Compass Direction GX2150 can be set to show AIS BRG to target in True or Magnetic
Four built-in receiversThe MATRIX AIS+ has 4 dedicated receivers to keep you aware of communications and vessels around you. General coverage receiver for marine VHF Channel 70 receiver for Digital Selective Calling Two AIS receivers to receive transmissions from Class A and B transponders

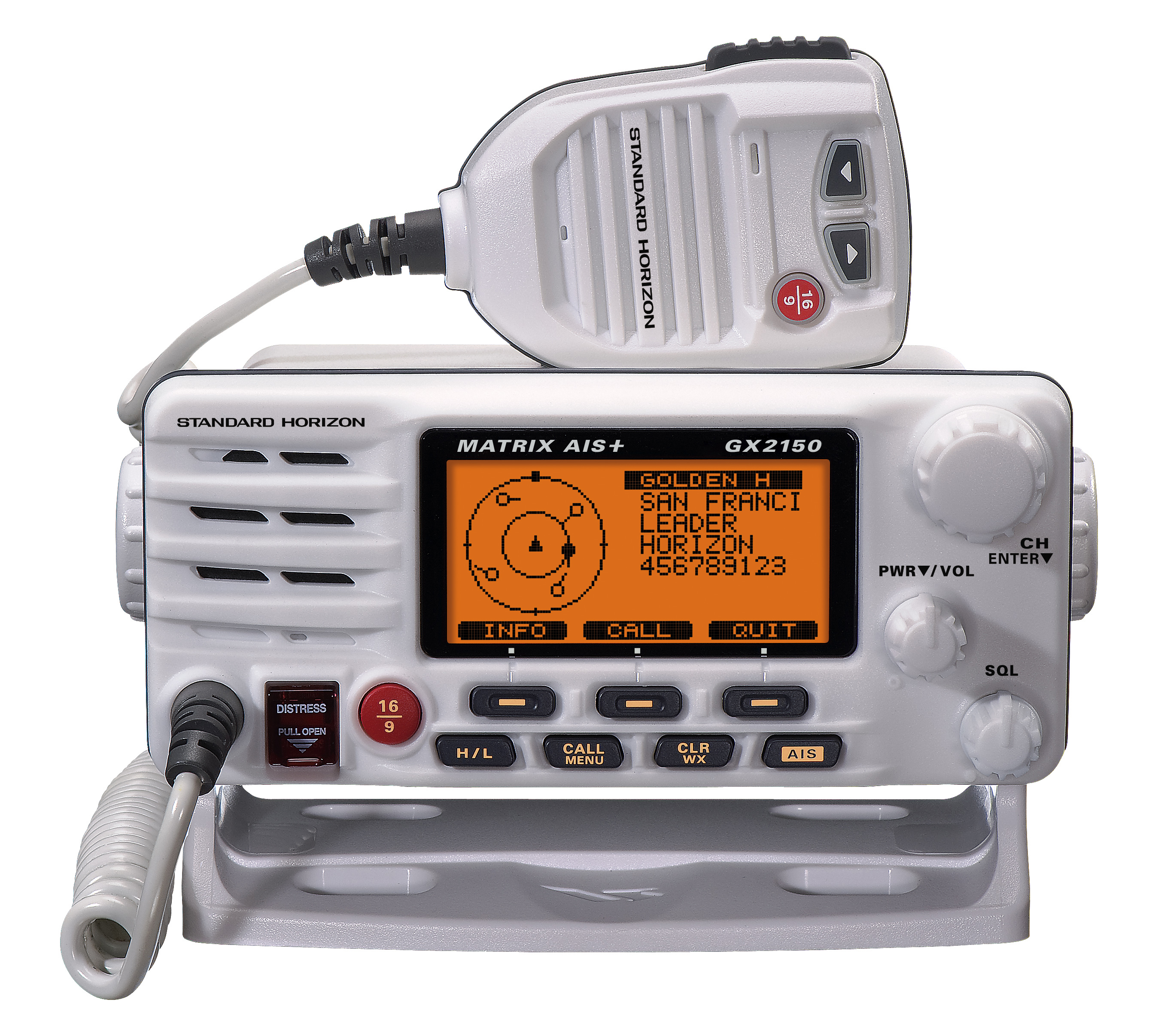

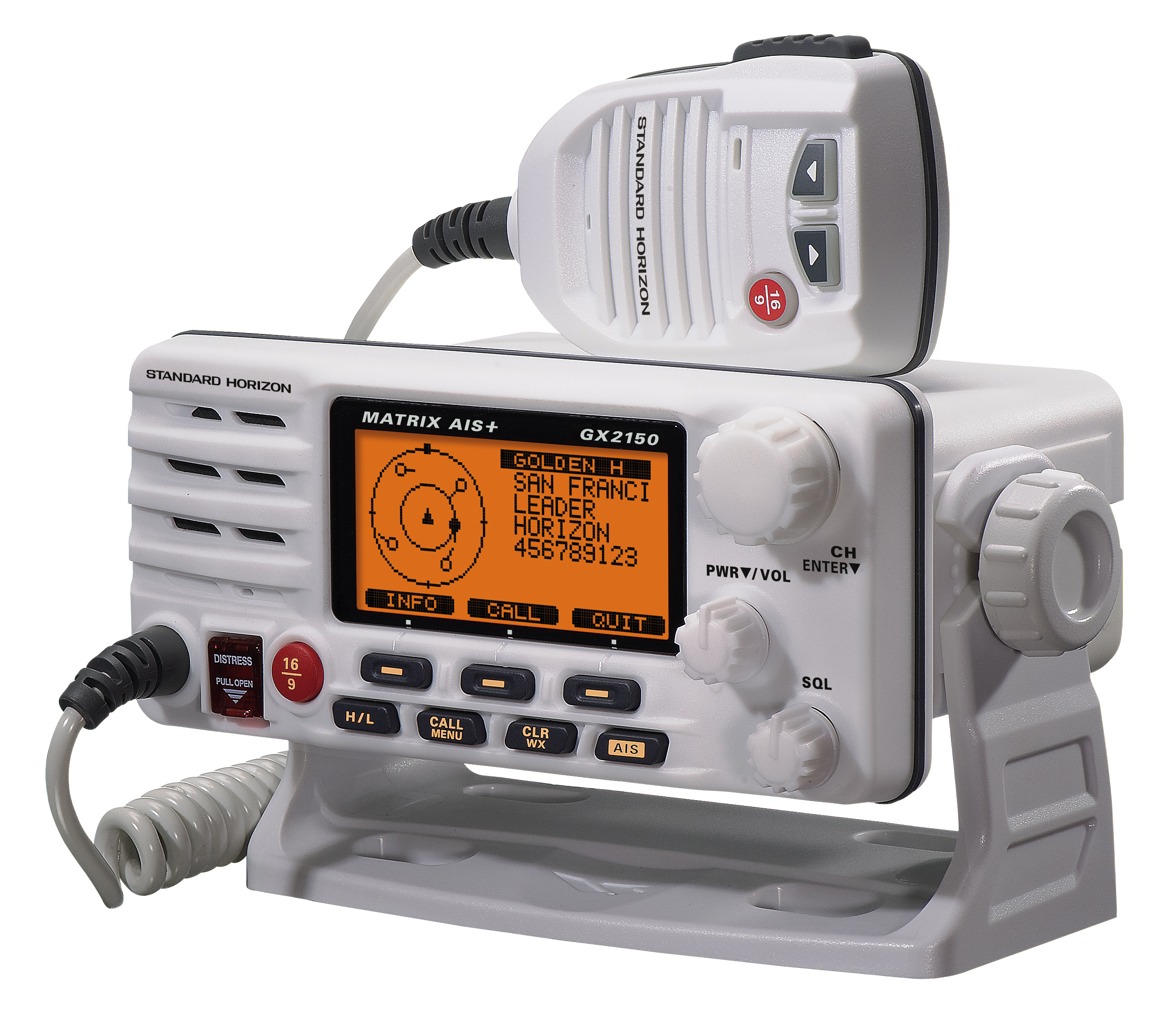

Dual Channel AIS Receiver Built-inThe MATRIX AIS+ GX2150 has a dual channel AIS receiver built-in which allows you to see AIS targets simply by connecting a GPS with NMEA 0183 output and a marine VHF antenna. To show your vessels position in relation to AIS targets press the dedicated AIS key. The AIS display is capable of showing MMSI, Call Sign, Ship Name, BRG, DST, SOG and COG of AIS targets. You may also contact an AIS Ship directly using Digital Selective Calling. Two alarms (CPA and TCPA) may be setup to alert you when an AIS ship may be approaching to close to your location. In addition the GX2150 can be connected to a compatible GPS chart plotter (which can use NMEA 0183 VDM sentence at 38400 baud) to show AIS targets.
Navigate to WaypointsThe MATRIX AIS+ is capable of entering and saving up to 100 waypoints. These waypoints may be selected and navigated to by using a unique navigation compass display that shows your vessels SOG, COG, BRG (Bearing) and DST (Distance) to the waypoint when connected to an external GPS.
30W PA and Fog signaling with Listen backThe MATRIX AIS+ includes a 30W Loud Hailer with Fog signals; Bells and Whistles with listen back. For added benefit, the last selected VHF channel can be heard when in the PA or Fog modes and the AIS Display may be accessed and used. In addition, the MATRIX AIS+ allows you to start a fog horn and then view the AIS page simultaneously.
Big, bold displayThere is no question about it. With a big, bold display there is no mistaking the information. The contrast and brightness can be adjusted for situations where the radio cannot be mounted directly in front of you.
Programmable Scan, Priority Scan and Dual WatchScanning is not an issue with the MATRIX AIS+. The radio can be setup to scan any number of channels with or without a priority channel or simply can be setup to scan between a priority channel and one other channel (dual watch).
NOAA Weather channels and Weather Alert10 NOAA and Canadian Weather channels are pre-programmed and easily selectable using the dedicated WX key. In addition, the MATRIX AIS+ can be set to monitor WX channels and provide an audible alert to inform of pending storm advisories.
Digital Selective Calling (DSC)The MATRISX AIS+ is an ITU Class D class DSC VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels. The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, All ship - Urgency and Safety, Group, Position report and position request calls.
RAM3 second station capableNeed to remotely control a VHF from your cockpit of fly bridge? The MATRIX AIS+ is RAM3 remote mic capable to control all VHF and DSC functions at a second station. In addition, the MATRIX AIS+ can show AIS displays and vessel information when connected to a GPS.
It’s built better so backed betterBecause the GX2150 is built better, it’s back better. If your Standard Horizon GX2150 ever fails for any reason including water damage during normal use in the first three years, STANDARD HORIZON will repair or replace it free, without hassle or charges…period! If it fails thereafter in normal use it for the life time of the product it is covered by Standard Horizon’s Lifetime Flat Rate Service and Customer Loyalty Programs.
