GX1850G
Zoom Click Image to Zoom In

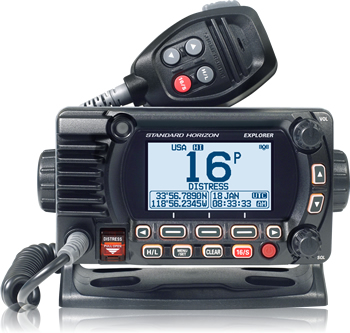

Explorer Series GX1850G 25W Fixed Mount VHF / GPS / NMEA2000 / Second Station Capable


• Built-in 66 Channel WAAS GPS receiver
• NMEA2000 Compatible (GX1850GPS/GX1850)
• Meets ITU-R M.493-13 Class D DSC (Digital Selective Calling)
• Separate Receiver for CH70 (Receiving DSC Calls)
• Ultra-slim and compact Rear case design (Depth 3.3", 82mm)
• NMEA 0183 Connectivity
• E2O (Easy to Operate) Icon & Menu System
• Preset key stores up to 10 favorite channels
• Second Station Remote Microphone (Optional RAM4 SSM-70H)
• Intercom Feature between the Radio and an Optional Second Station
• Programmable Scan, Priority Scan, and Multi Watch
• Automatic DSC polling of up to 6 ships GPS positions
• GPS Compass, Waypoint and GPS status pages
• Enter, Save, and Navigate to a waypoint using the Compass page
• Navigation (LAT/LON, SOG, and COG) information shown on display
• GM (Group Monitor) Using DSC Group position Calling
• MOB (Man over Board) Operation
• Selectable Night Mode Display
• Noise canceling microphone with channel change selection, 16/S and H/L keys
• NOAA Weather channels with weather Alert

Explorer Series GX1850G 25W Fixed Mount VHF / GPS / NMEA2000 / Second Station Capable


• Built-in 66 Channel WAAS GPS receiver
• NMEA2000 Compatible (GX1850GPS/GX1850)
• Meets ITU-R M.493-13 Class D DSC (Digital Selective Calling)
• Separate Receiver for CH70 (Receiving DSC Calls)
• Ultra-slim and compact Rear case design (Depth 3.3", 82mm)
• NMEA 0183 Connectivity
• E2O (Easy to Operate) Icon & Menu System
• Preset key stores up to 10 favorite channels
• Second Station Remote Microphone (Optional RAM4 SSM-70H)
• Intercom Feature between the Radio and an Optional Second Station
• Programmable Scan, Priority Scan, and Multi Watch
• Automatic DSC polling of up to 6 ships GPS positions
• GPS Compass, Waypoint and GPS status pages
• Enter, Save, and Navigate to a waypoint using the Compass page
• Navigation (LAT/LON, SOG, and COG) information shown on display
• GM (Group Monitor) Using DSC Group position Calling
• MOB (Man over Board) Operation
• Selectable Night Mode Display
• Noise canceling microphone with channel change selection, 16/S and H/L keys
• NOAA Weather channels with weather Alert
Mounting Hardware
MMB-97 MMB-97
Rain/Dust Covers
HC1600 DUST COVER HC1600 DUST COVER
Second Station
CT-100 23' Extension Cable for CMP25 / CMP30 / CMP31 / SSM-70H / SCU-30
SSM-70H RAM4 Wired Remote Access Microphone
Sensors
SCU-31 SCU-31 GPS Smart Antenna
SCU-38 External GPS Antenna with 16' of cable
Speakers
MLS-300B BLACK SPEAKER
MLS-300W WHITE SPEAKER
How can I check to see if my radio is receiving correctly? I don’t seem to hear anyone talking.

Try switching the radio over to the Weather channel mode. When you are in this mode the USA will disappear and be replaced by WX on your screen. Make sure you check all 10 weather channels to find your local one. If you receive weather loud and clear, this is a good sign your radios receiver is working as the radio only has one receiver. You may be out of range of other boaters, or you may be listening on channels no one is actively using at the time.

The radio is asking me to enter my MMSI number. Where do I get this number?

The MMSI numbers are a number you will need to register for through one of the registration agencies. For a U.S. registered MMSI number you can reach out to Boat US or United States Power Squadrons. For an MMSI number for international use you will have to register through the FCC. Boat US https://www.boatus.com/mmsi/ US Power Squadrons https://www.usps.org/ FCC https://www.fcc.gov/wireless/bureau-divisions/mobility-division/ship-radio-stations

Built-in 66 channel GPS receiver

66 Channel WAAS GPS receiver built into the face of the radio. Providing the flexibility of using the NMEA2000 data bus or the built-in GPS to provide highly accurate position data on the display of the radio.

NMEA2000 Compatible

Easy plug and play connectivity to the NMEA bus. A single plug in interface allows connectivity of GPS data, and DSC calling between compatible devices.

Second Station RAM4 compatibility

Now compatible with Standard Horizon's latest second station microphone RAM4, model SSM-70H. All functions on the main radio can now be controlled on the Second Station RAM4, this includes all radio functions, DSC functions, and intercom features between the radio and the Second Station.

E2O Easy to Operate Menu System

Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.

Ultra Compact Easy Installation

Mounting a VHF radio has never been easier. The Explorer Series VHF's have an ultra thin, compact rear case, only 3.3” in depth or half the depth of comparable VHF radios on the market. The rear case design also gives flexibility when flush mounting the radio in tight areas or bracket mounting the radio by taking up less dash space, and allowing more mounting options.

3-Year Waterproof Warranty

If your Explorer Series radio fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it.
