Click Image to Zoom InExplorer Series GX1800W 25W Fixed Mount VHF / Second Station Capable
(AVAILABLE IN WHITE ONLY)
Compass Display

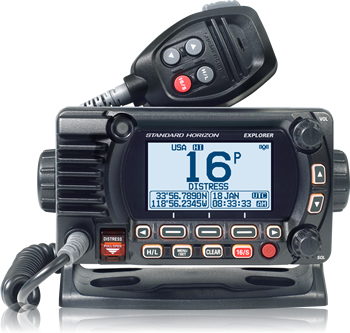

Explorer Series GX1800W 25W Fixed Mount VHF / Second Station Capable
(AVAILABLE IN WHITE ONLY)
Compass Display
| Mounting Hardware | ||
| MMB-97 | MMB-97 |
|
| Rain/Dust Covers | ||
| HC1600 DUST COVER | HC1600 DUST COVER |
|
| Second Station | ||
| CT-100 | 23' Extension Cable for CMP25 / CMP30 / CMP31 / SSM-70H / SCU-30 |
|
| SSM-70H | RAM4 Wired Remote Access Microphone |
|
| Sensors | ||
| SCU-31 | SCU-31 GPS Smart Antenna |
|
| Speakers | ||
| MLS-300B | BLACK SPEAKER |
|
| MLS-300W | WHITE SPEAKER |
|
For radios produced in 2018 and newer we can do this remotely! We would need you to email marinetech@yaesu.com with the following information: Name, Model Number, Serial Number, Current MMSI, and the Request Code. The radios Request Code you will find the radios Reset Menu under the option MMSI. All are needed to provide you a reset password via email. Typically, we can provide you a reset password in about 2 business days.
How can I check to see if my radio is receiving correctly? I don’t seem to hear anyone talking.Try switching the radio over to the Weather channel mode. When you are in this mode the USA will disappear and be replaced by WX on your screen. Make sure you check all 10 weather channels to find your local one. If you receive weather loud and clear, this is a good sign your radios receiver is working as the radio only has one receiver. You may be out of range of other boaters, or you may be listening on channels no one is actively using at the time.
I am transmitting in an area with lots of boats and no one responds to me. Why is this happening?Although there are other boaters near you, 1) they must have their radio turned on, 2) they must be on the same channel, 3) be able and willing to respond to your call.
Why can others not hear me when I transmit?There are several reasons this can happen which are not a fault of the radio. Make sure you test with another person who is aware you will test your radio with theirs. Check that both radios are on a common non-emergency channel such as channel 68. Speak clearly directly into the microphone hole opening with your mouth no more than 2 inches away. Try setting your radio to Hi transmit power.
How do I remove the current MMSI number from my newer radio?For radios produced in 2018 and newer we can do this remotely! We would need you to email us marinetech@yaesu.com with the following information: Name, Model Number, Serial Number, Current MMSI, and the Request Code. The radios Request Code you will find in the radios Reset Menu under the option MMSI. All are needed to provide you a reset password via email. Typically, we can provide you a reset password in about 2 business days.
The radio is asking me to enter my MMSI number. Where do I get this number?The MMSI numbers are a number you will need to register for through one of the registration agencies. For a U.S. registered MMSI number you can reach out to Boat US or United States Power Squadrons. For an MMSI number for international use you will have to register through the FCC. Boat US https://www.boatus.com/mmsi/ US Power Squadrons https://www.usps.org/ FCC https://www.fcc.gov/wireless/bureau-divisions/mobility-division/ship-radio-stations
Now compatible with Standard Horizon's latest second station microphone RAM4, model SSM-70H. All functions on the main radio can now be controlled on the Second Station RAM4, this includes all radio functions, DSC functions, and intercom features between the radio and the Second Station.
E2O Easy to Operate Menu SystemRedesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.
Ultra Compact Easy InstallationMounting a VHF radio has never been easier. The Explorer Series VHF's have an ultra thin, compact rear case, only 3.3” in depth or half the depth of comparable VHF radios on the market. The rear case design also gives flexibility when flush mounting the radio in tight areas or bracket mounting the radio by taking up less dash space, and allowing more mounting options.
