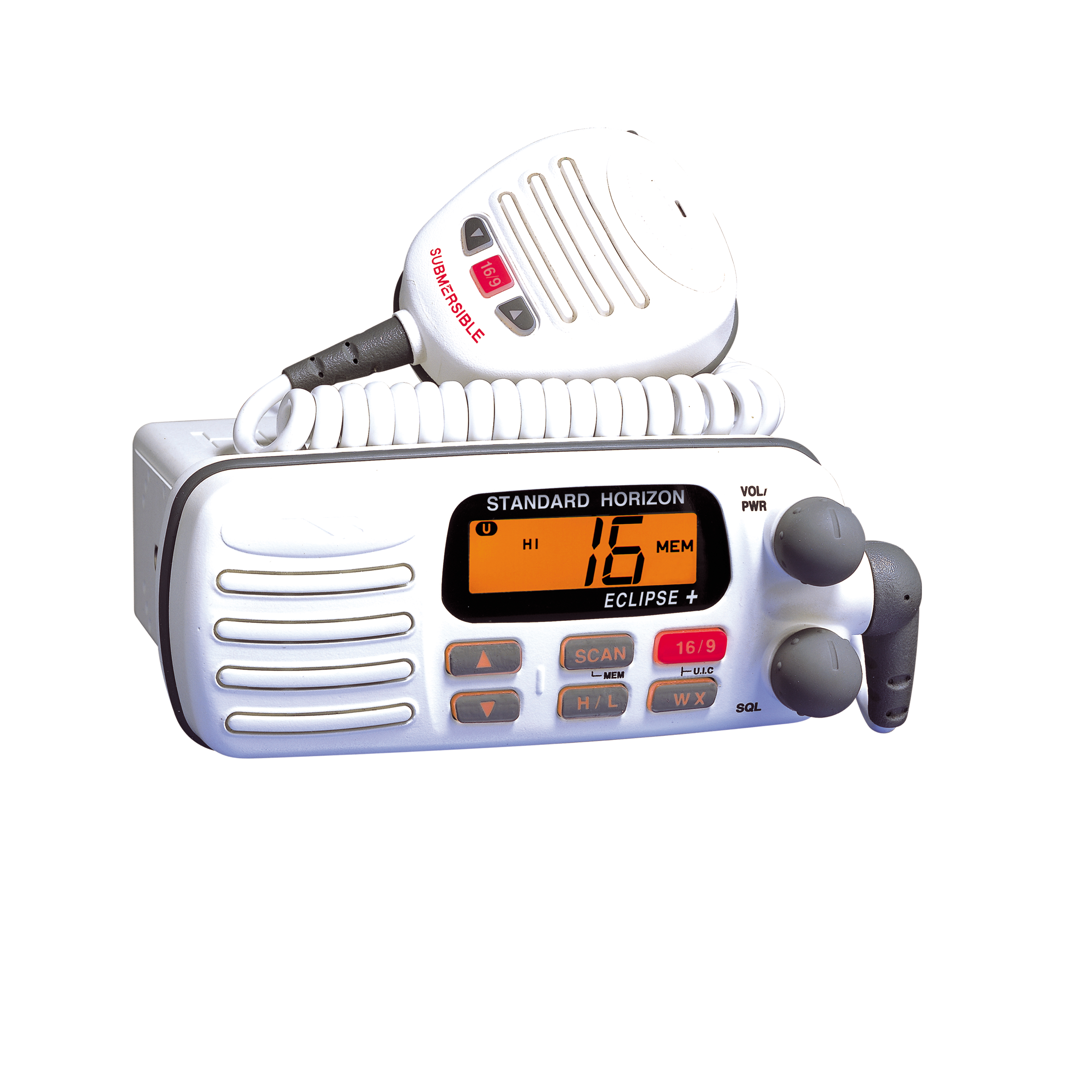

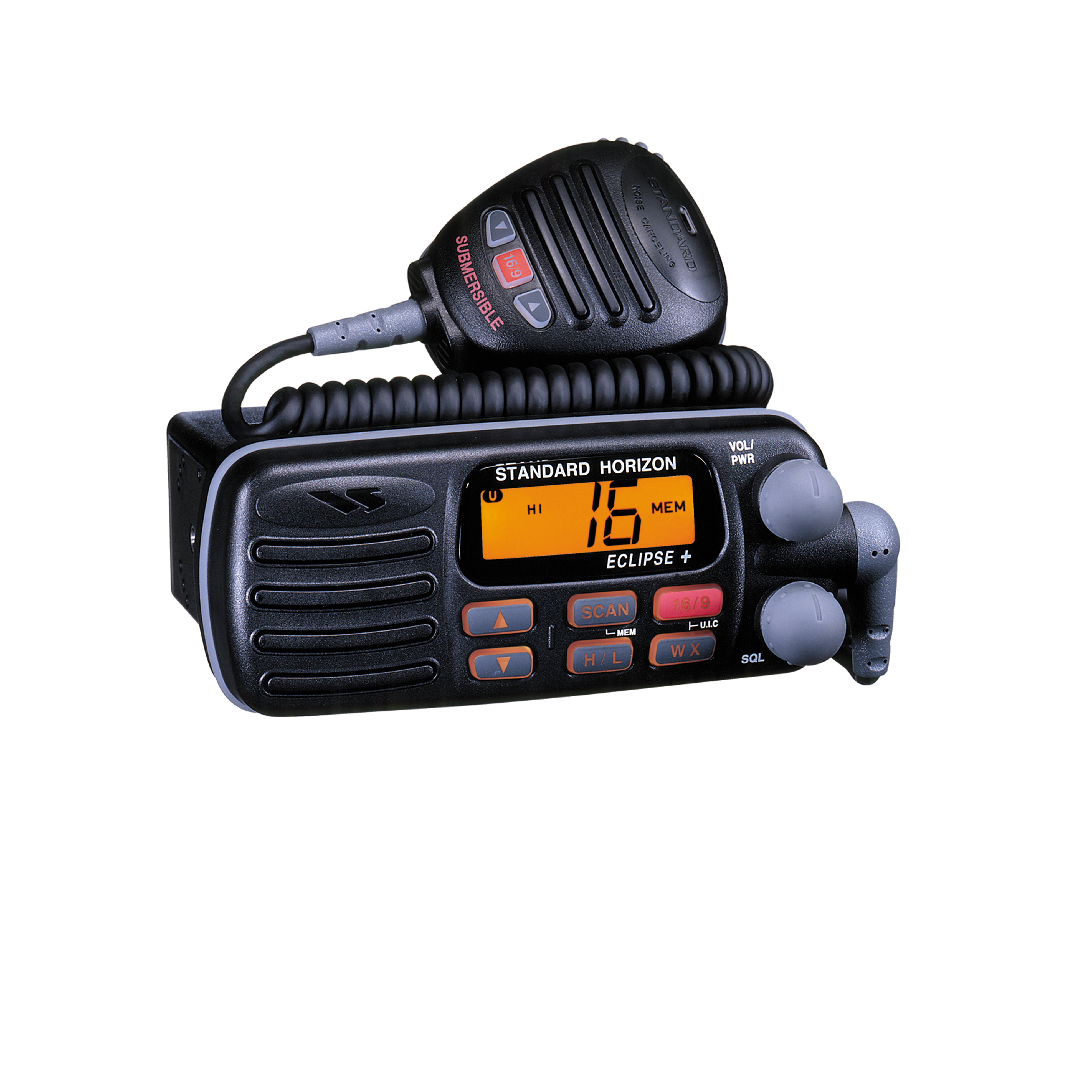

Click Image to Zoom InECLIPSE+ GX1250SA
Don't be fooled by it's slight size.
Although the ECLIPSE+ is the smallest fixed mounted VHF STANDARD HORIZON has ever produced, you still can espect the big performance of larger VHF's.
| Mounting Hardware | ||
| CMB16 | Flush Mount Kit | |
| Speakers | ||
| 101W | Small Bracket Mount Extension Speaker (In White Only) | |
| MLS-300B | BLACK SPEAKER |
|
| MLS-300W | WHITE SPEAKER |
|
| MLS-310B | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (BLACK) |
|
| MLS-310W | 10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (WHITE) |
|
The design of the Eclipse+ does not allow the use of more than one speaker because the internal audio amplifier is only capable of driving one 4 Ohm speaker. So when an external speaker is plugged in the front panel speaker will be turned off.
What connector is used for the external audio speaker?It is a Standard RCA phono plug. This connector is exactly the same connector used on a VCR.
When I press the scan key the radio does not scan.The Eclipse+ will scan but the user must program the radio to scan. To program or select the channels to scan, go to the channel using the up or down keys and press and hold the SCAN key until the radio's LCD shows MEM. This means the channels are programmed into the scan memory. Repeat this procedure for all the channels that are to be scanned. Next adjust the squelch control to the point where the noise stops, press the scan key and the radio is scanning and will stop at a channel when a transmission is received. To remove a channel from memory, select the channel press and hold the SCAN key until MEM is removed from the LCD.
Is there a flush mount kit available for this radio?This radio can be flush mounted using the optional CMB16 flush mount kit available through any Standard Horizon dealer or our parts department at (714)827-7600.
abc?
Building a submersible radio is no simple task! STANDARD HORIZON utilizes a high impact non-corrosive case, display lens conspicuous waterproof gasketing, waterproof connectors and PCB's protected with Humiseal, barrier. Engineered for unparalleled reliability, the HORIZON ECLIPSE+ exceed submersions of 3' for 30 minutes.
CLEAR VOICE NOISE REDUCTION TECHNOLOGYThe ECLIPSE+ utilizes an exceptional microphone meeting the same strict standards for waterproofness as the radio. ECLIPSE+ features Clear Voice Noise Reduction Technology eliminating unwanted background noises like engines and wind during transmission. This assures transmissions are crystal clear.
NOAA WEATHER ALERT, PROGRAMMABLE SCANNING AND PRIORITY SCANECLIPSE+ highlights scanning of user selected channels or priority scanning of Channel 16. Additionally, ECLIPSE+ features 10 NOAA weather channels including weather alert allowing ECLIPSE+ to intercept frequency encoded regional Emergency Weather alerts. The LCD display provides visual indications for all scanning functions in a bold easy to understand flags.
COMPLETE CHANNEL COVERAGE & CONVENIENCEAt first glance, the trim size of the ECLIPSE+ makes you wonder how so much transmit power and so many features could be packed into this radio. But they're all in there, a full 25-watt output, all US, Canadian and International channels plus 10 NOAA Weather channels that provide you with 24-hour continuous broadcasts. Press a single button and get all the information you need on a jumbo, super-readable LCD. And should you need help fast, the ECLIPSE+ also offers instant access to hailing channel 9 as well as USCG emergency channel 16.
USER PROGRAMMABLE SCANNING/PRIORITY SCANLike all STANDARD HORIZON scanning radios, you can easily program the ECLIPSE+ to scan any number or combination of channels you with or without priority on channel 16.
BUILT BETTER, SO, IT IS BACKED BETTERThe ECLIPSE+ is covered by STANDARD HORIZON's exclusive 3-year Waterproof Warranty. If your STANDARD HORIZON radio fails for any reason, including water damage, during normal use in the first 3 years, STANDARD HORIZON will repair it without hassle or charges....period! If it fails thereafter in normal use for as long as you own it, our unique Lifetime Flat Rate Service Program will cover it. Flat rate is established at time of original purchase based upon the factories current rate. Consult STANDARD HORIZON or your dealer for details.
