Dot matrix display, affordable and Class D DSC

• Class D DSC (Digital Selective Calling) with Individual, All ship, Position Report, Request and Distress
• Submersible JIS-7 / IPX7 (3.3 feet for 30 minutes)
• Channel controls on the mic
• Full dot matrix display
• NMEA Input and Output
• Position information shown on display when connected to GPS receiver
• Programmable Scan, Priority Scan, and Dual Watch
• All USA/International and Canadian Marine Channels
• NOAA Weather Channels with Weather Alert
• Replaces older Eclipse+ Models

• Overall Dimension: 2.4"H x 6.1"W x 6.7"D

• Flush Mount Cutout: 2.0"H x 5.2"W

• 3 Year Waterproof Warranty

Mounting Hardware
MMB-84	Flush Mounting Bracket
Speakers
MLS-300B	BLACK SPEAKER
MLS-300W	WHITE SPEAKER
MLS-310B	10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (BLACK)
MLS-310W	10W AMPLIFIED SPEAKER WITH VOLUME CONTROL (WHITE)

GX1100S Individual Brochure
GX1100S owner's manual
GX1100S template

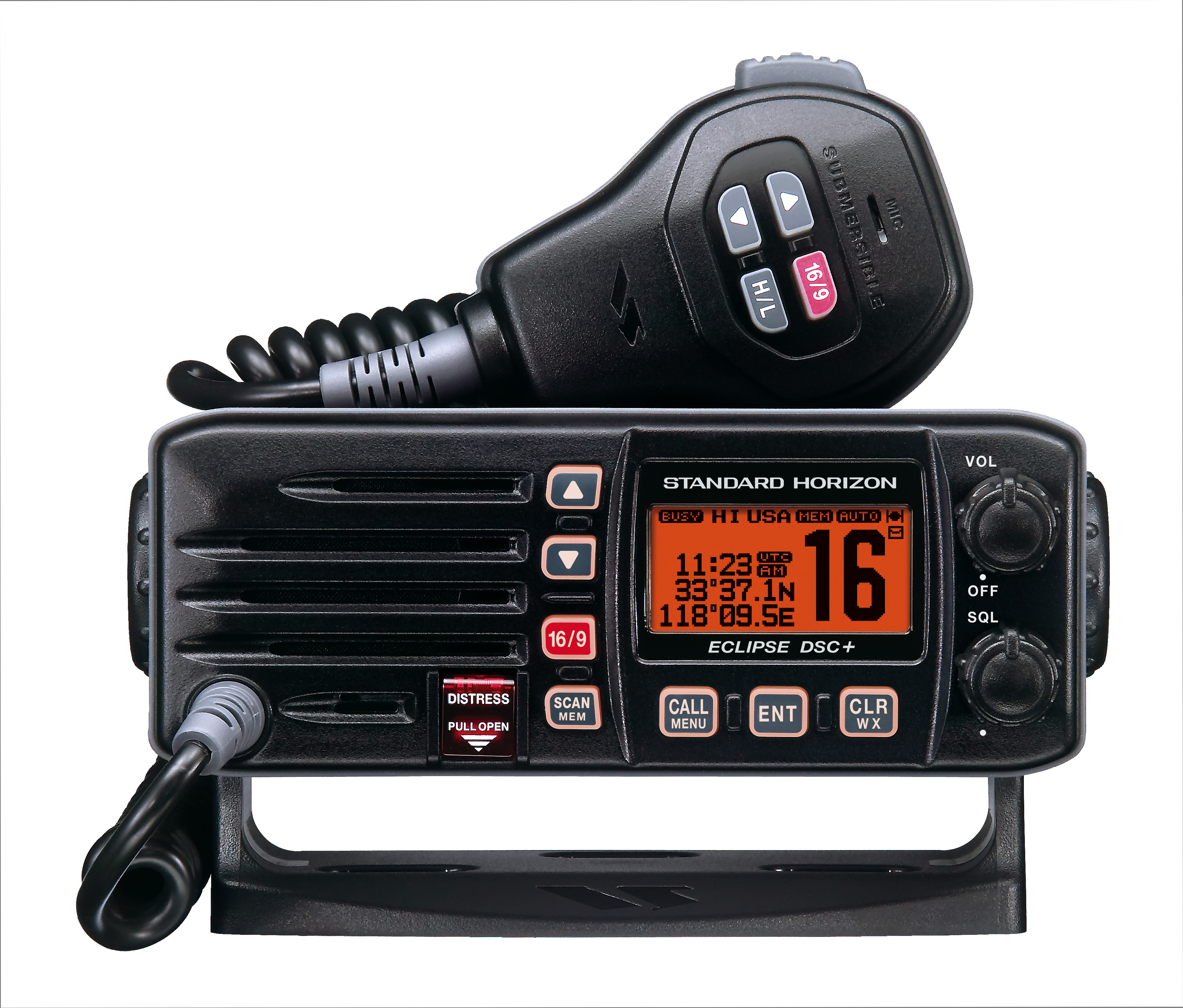

GX1100SB Front Image

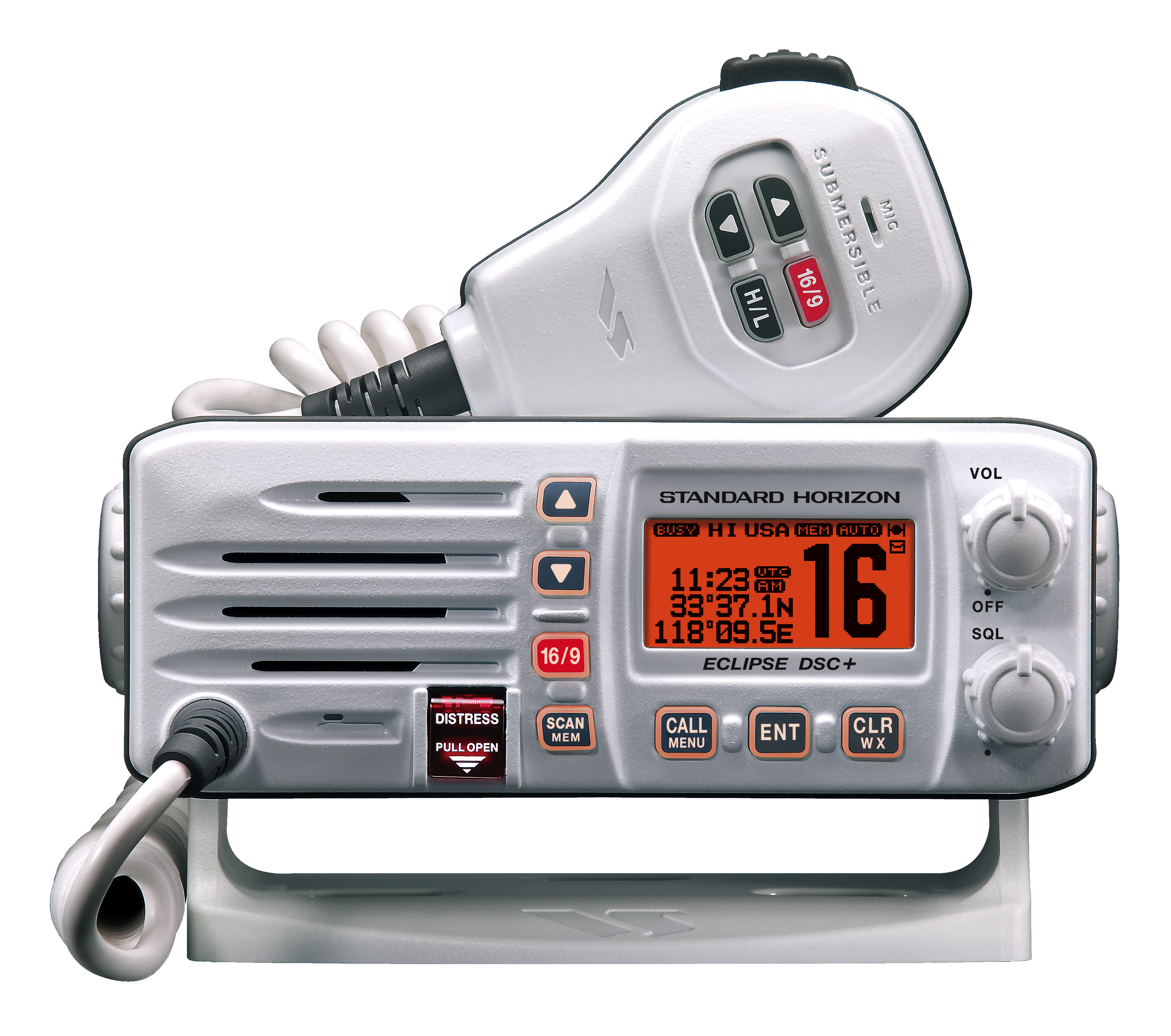

GX1100SW Front Image

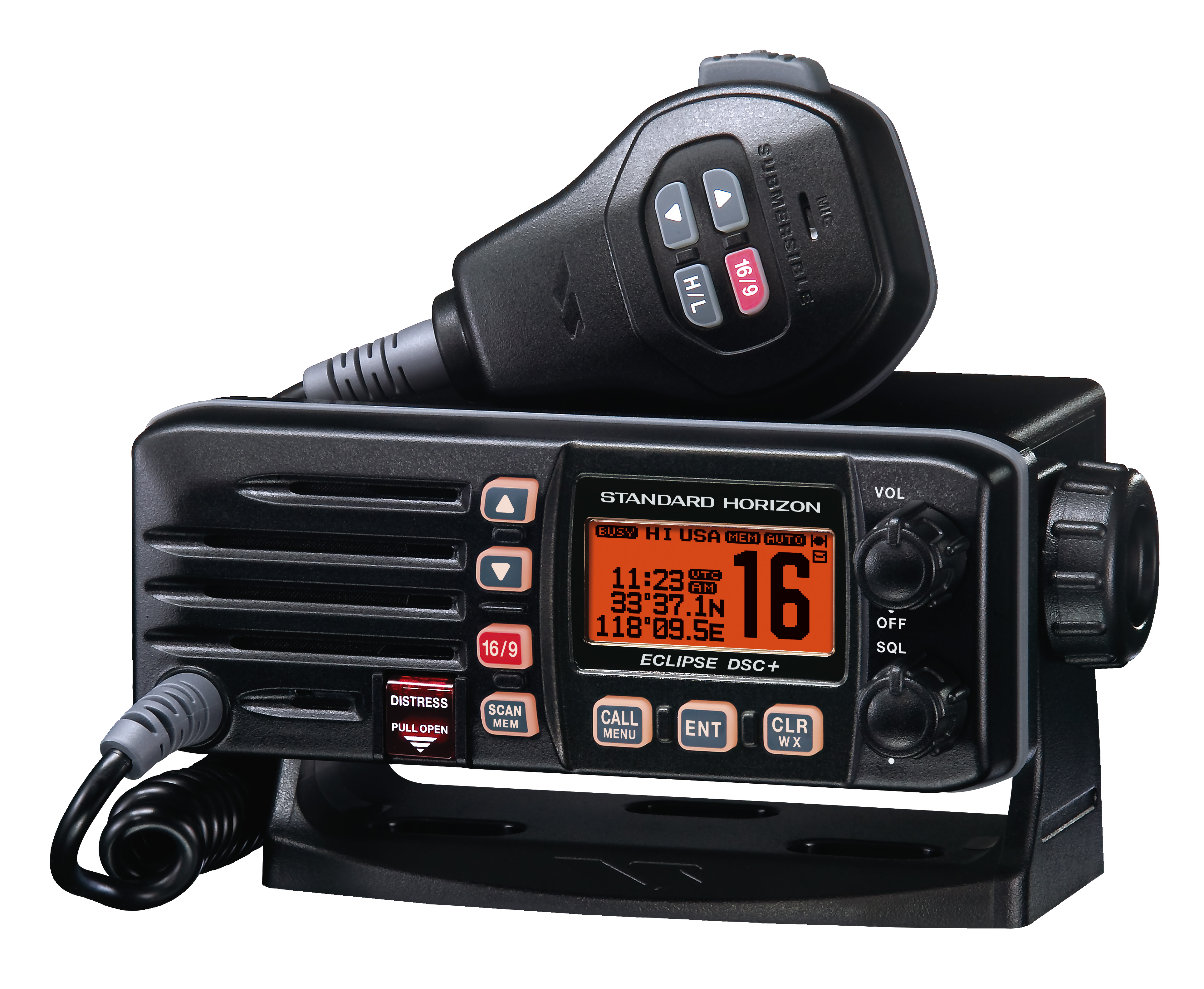

GX1100SB Left Image

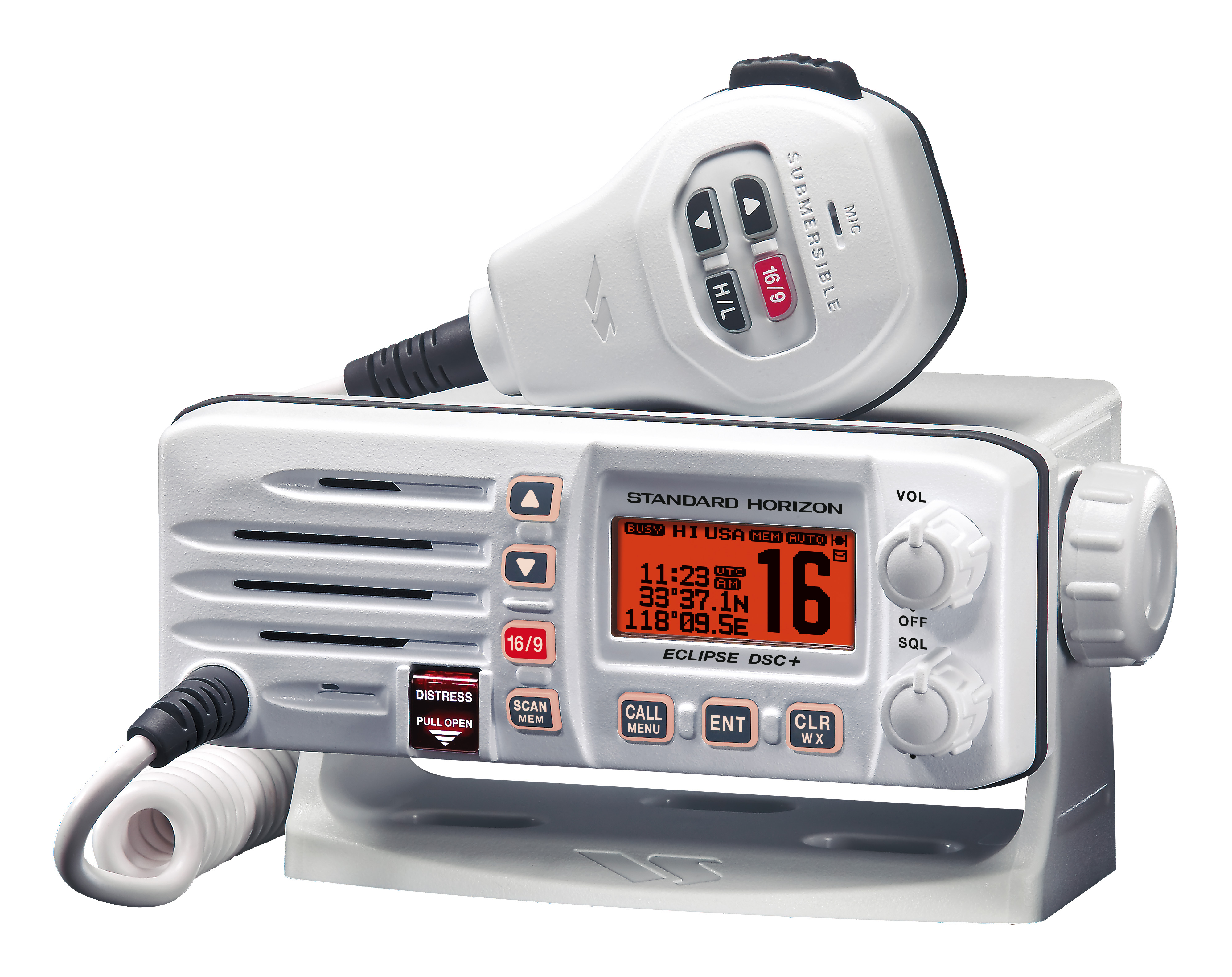

GX1100SW Left Image
GX1100S_service manual
Eclipse DSC+ PC Software

Class D Digital Selective Calling

The ECLIPSE DSC+ is Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to traffic on Marine VHF channels. The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time (with GPS connected), to facilitate prompt response. Additional calls that can be made are Individual, Urgency and Safety.

ClearVoice noise reduction technology

The ECLIPSE DSC+ microphone features Clear Voice Noise Reduction Technology eliminating unwanted background noises like engines and wind during transmission. This assures transmissions are crystal clear. In addition the microphone allows direct selection of channels 16 or 9, 1 or 25 watt transmit power and channel selection.

GPS Information

When interfaced with a GPS receiver, Position, date, and time will be shown on the radios display.

Affordable and Ultra Compact Size

Designed with an advanced die-cast chassis make this full functioning 25 Watt VHF radio the perfect choice for serious power and sail boaters alike

Advanced features

Large easy to read dot matrix LCD which displays LAT/LON or channel names, Programmable Scan, Priority Scan, and Dual Watch, All USA/International and Canadian Marine Channels, NOAA Weather channels with weather alert.

DSC Position Polling and NMEA in/output

Easily share position information with other DSC equipped vessels using the position request and position sharing functions. With the push of a few buttons you can request the position of another vessel, or simply send your position information to the vessel you select. The GPS Position of a received DSC Distress or Position Request call can be shown on a compatible GPS chart plotter simply by connecting 3 NMEA wires.

3-Year waterproof warranty

If the ECLIPSE DSC+ fails for any reason (including water damage) during normal use for the first 3 years of ownership, STANDARD HORIZON will repair or replace it free, without hassles or charges. If it fails for anytime thereafter in normal use, for as long as the original purchaser owns the radio, STANDARD Horizon's Lifetime Flat Rate and Customer Loyalty Service Programs will cover it.
