Click Image to Zoom In5" WAAS GPS CHART PLOTTER FISH FINDER COMBO
Try on a PC before you purchase by downloading the PC Emulator
Fish Finder
5" WAAS GPS CHART PLOTTER FISH FINDER COMBO
Try on a PC before you purchase by downloading the PC Emulator
Fish Finder
| Depth Transducers & Hardware | ||
| DST520 | 600W 2" Nylon Thru-hull Depth/Temp Transducer |
|
| DST521 | 600W Transom Mount Depth/Speed/Temp transducer |
|
| DST523 | 600W 2" Bronze Thru-hull Depth/Temp Transducer |
|
| DST525 | 600W In-Hull depth transducer |
|
| DST526 | 600W Thru-hull Depth/Speed/Temp Transducer |
|
The internal dual frequency (50 and 200kHz) Fish Finder's advanced filtering eliminates unwanted noise and sharpens return echos for enhanced seperation and detection. Transducer ID™ allows the CPF180i to query the transducer (sold separately) to determine its perfromance characteristics. Frequency, beam pattern and other unique transducer characteristics are sent to the Internal fish finder. This data allows the fish finder to fine tune itself to match the transducer which optimizes overall system performance. No matter what the conditions, you will be able to fine tune your fishing rather than the fish finder. Note: Transducer ID™ is a registered trademark of AIRMAR Technology Corporation, Milford.

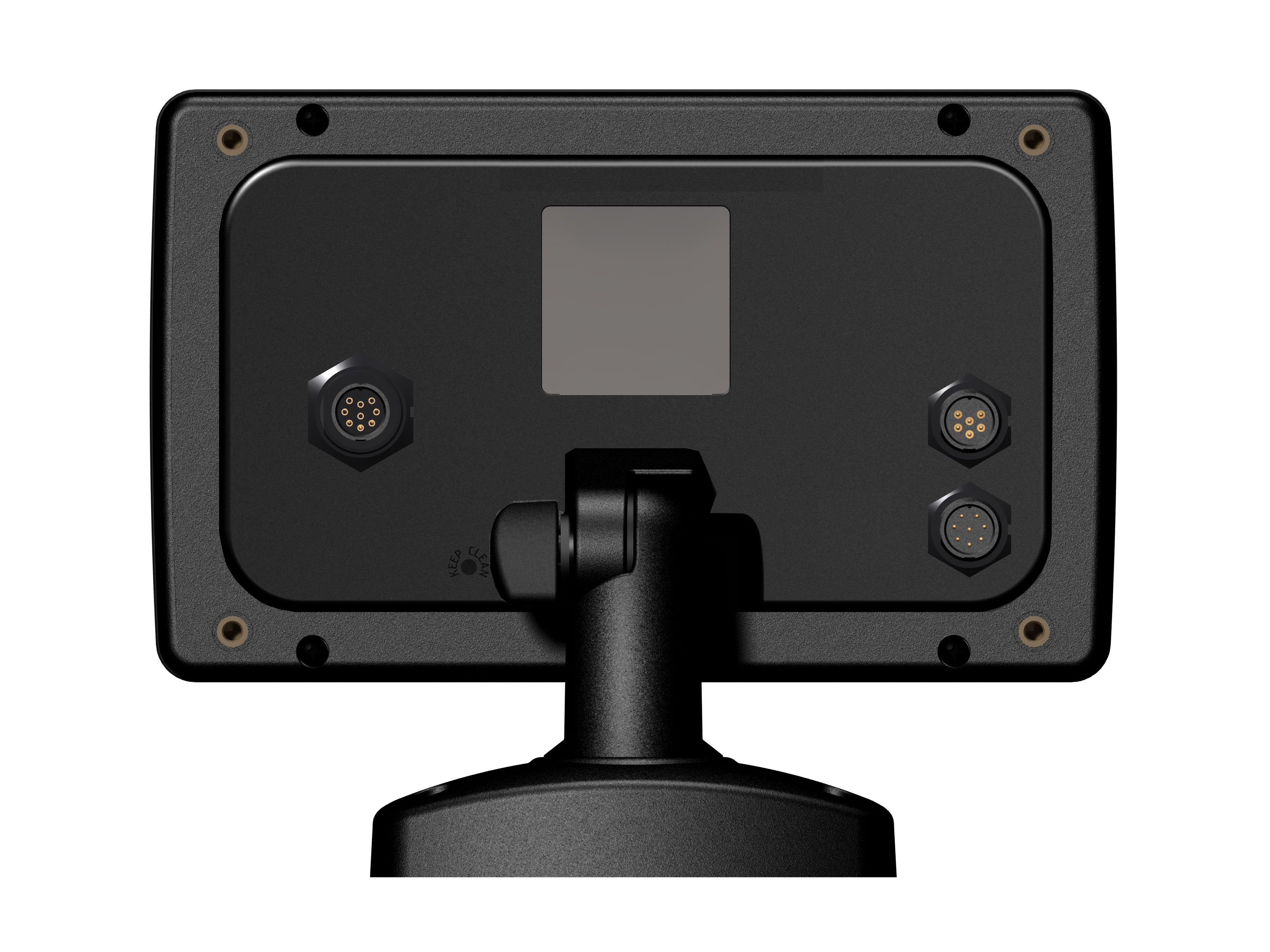

Internal GPS antenna / External OptionThe CPF180i has a 50 Channel GPS and antenna integrated into the rear case making it perfect for dash mount installations. For flush mounting the CPF180i has an dedicated connections for an optional GPS antenna supplied with 30 feet of routing cable.
Radar and AIS optionsRadar: The CPF180i is compatible to Sitex radar models; MDS-1 (2KW Dome), MDS-8 (2KW Dome), MDS-9 (4K Dome), MDS-10-4 (Open array), MDS-10-5 (Open array). Automatic Identification System: Connnecting an option AIS ) receiver to the CPF180i to show targets from Commercial ships required to transmit their location on the chart page. Move the cursor over a target to display target information including, SOG, COG, Closest Point of Approach, and Time to Closest Point of Approach.

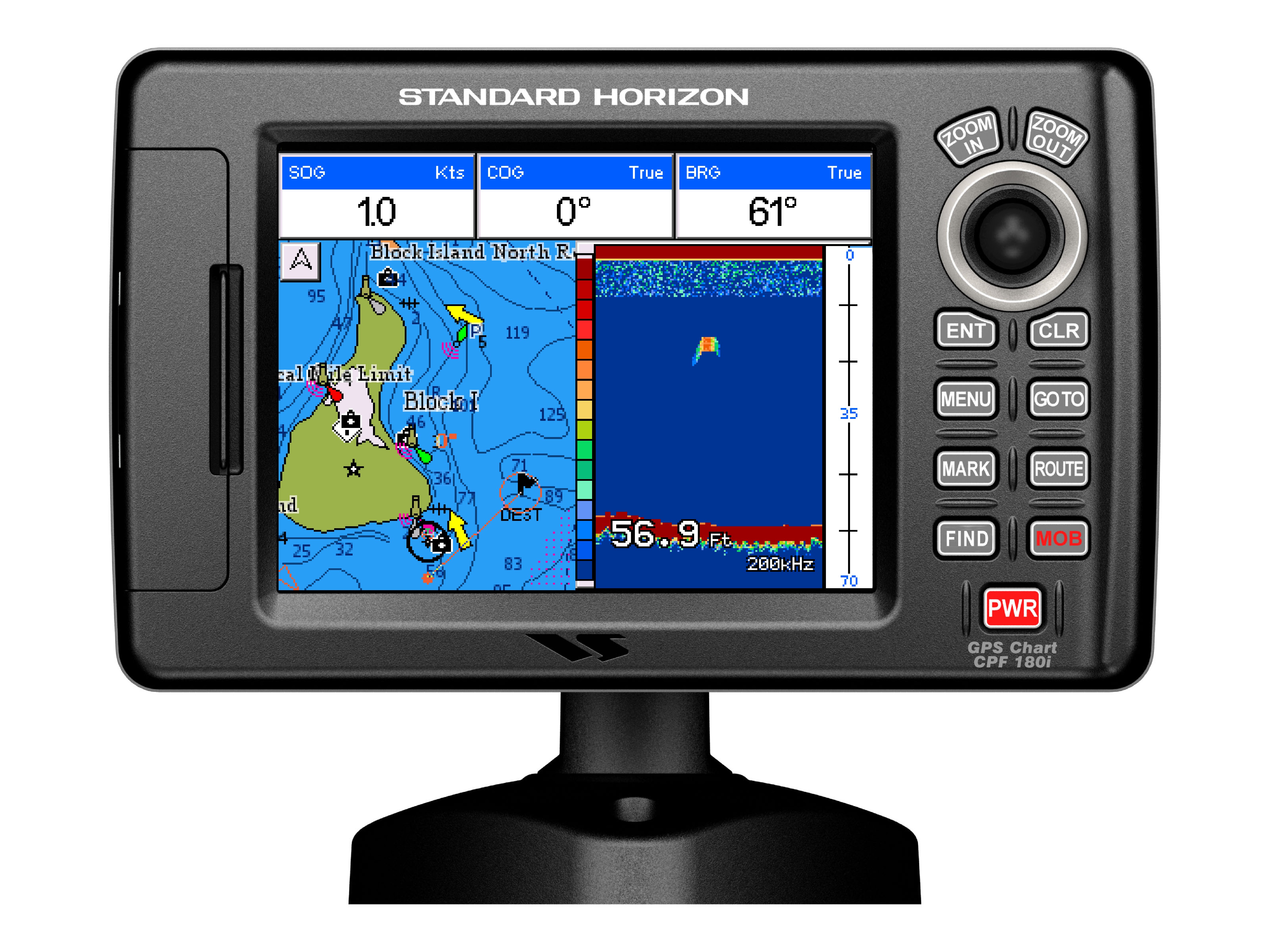

Direct Sunlight viewable color displayNothing beats the detail and impact of a color display. Featuring cutting edge transflective screen technology, the result is a display that delivers un-compromised bright, vivid color chart detail in the toughest of applications--direct sunlight.
Dedicated Navigation KeysUsing a GPS Chart Plotter has never been so easy! The CPF180i has dedicated MARK and ROUTE keys that allows the creation of a single waypoint or creation of a route right on the Chart Page. Want to navigate to one of the marks or to a Route, the GOTO key allows you to do so directly on the chart or via the popup menu when the key is pressed.
VHF Digital Selective Calling and Position PollingThe CPF180i GPS Chart Plotter has the capability to be connected to STANDARD HORIZON VHF Fixed mounted radios with DSC polling capability. This is done by simply connecting 3 wires between the CPF180i and the VHF. Connecting the products together allow you to securely and totally privately poll and display another vessels position on the display of the CPF180i. To take this one step further, the CPF180i has a DSC Call directory that logs the position of the polled vessels and also the position of a vessel that has transmitted a DSC Distress call. STANDARD HORIZON pioneered this function, leading the industry with innovative features and functionality.

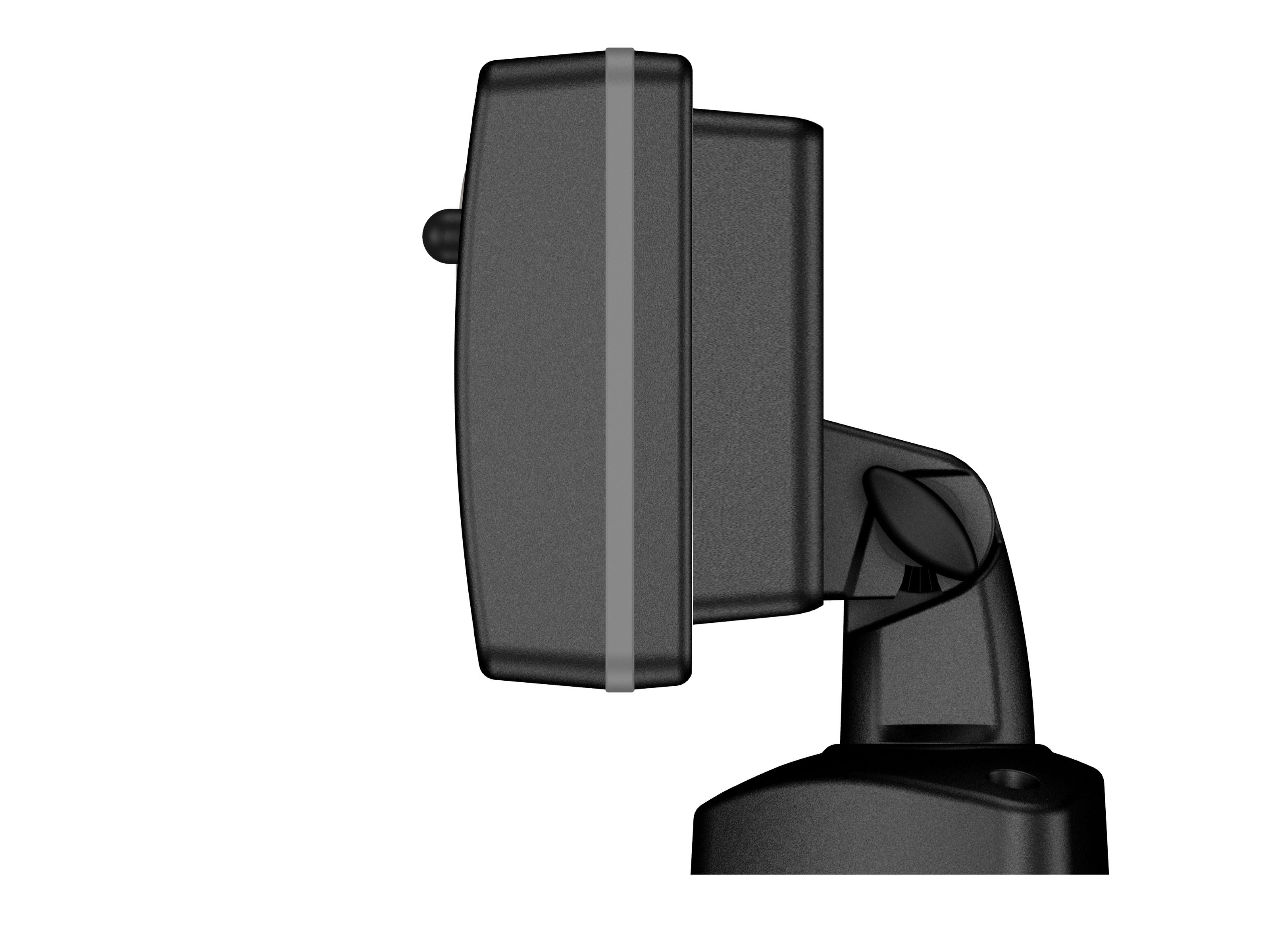

Swivel bracket and Flush Mount KitSupplied with a swivel mount bracket allowing the CPF180i to be rotated 360 degrees (left or right) for optimal viewing. In addition, flush mounting hardware is included, no optional flush mount kit needed!
3 Year WarrantyThe CPF180i was designed from the ground up to take the punishment of the marine environment and is "BACKED BY A 3 YEAR WATERPROOF WARRANTY!"
